Hazard Warning Switch: Testing and Inspection

INSPECTION

HAZARD LAMP SWITCH

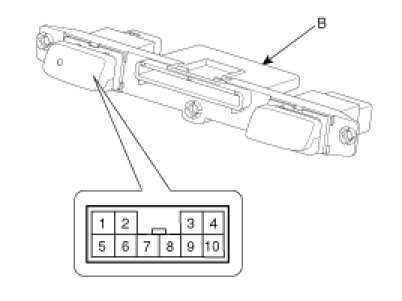

1. Disconnect the negative (-) battery terminal.

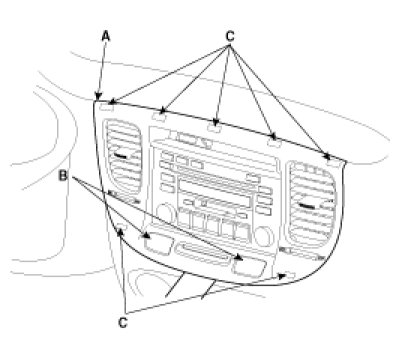

2. Remove the center facia upper panel (A) after pulling it by using regular screw driver (-). Take care of fixing clips (C).




3. Disconnect the connectors of rear defogger switch and hazard switch (B).
4. Remove the center facia switch assembly(B) from the center facia upper panel.

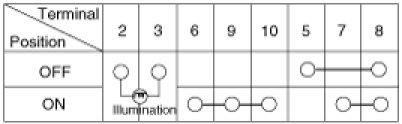

5. Operate the switch and check for continuity between terminals with an ohmmeter.
