Cluster Replacement

REPLACEMENT

CLUSTER REPLACEMENT

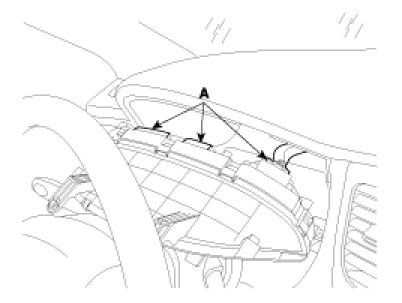

1. Remove the cluster facia panel.

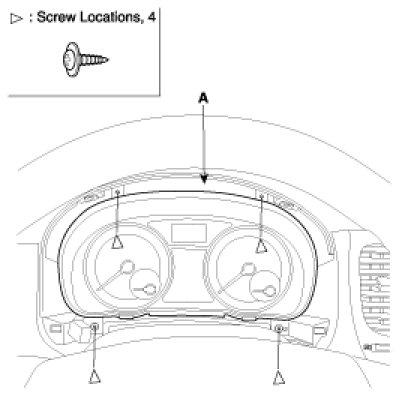

2. Loosen the mounthing screws.

CAUTION:
- Take care not to drop the glass scratch the glass surface.




3. Disconnect the cluster connector (A), then remove the cluster.





NOTE:
- Make sure the connector is plugged in properly.
