Cluster Facia Panel Replacement

REPLACEMENT

CLUSTER FACIA PANEL REPLACEMENT

NOTE:
- When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.

1. Tilt the steering column down.

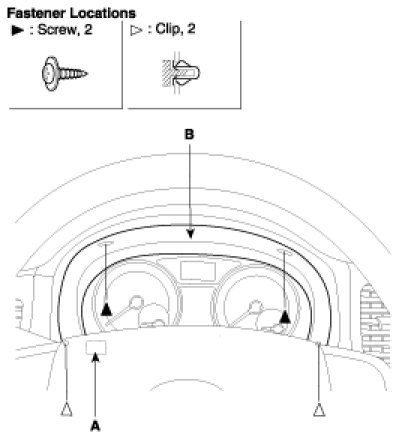

2. Disconnect the trip sensor connector(A) then remove the cluster facia panel(B).




3. Installation is the reverse of removal.

NOTE:
- Make sure the connector is plugged in properly.
