Overhaul

DISASSEMBLY

RELIEF PLUNGER
1. Remove the relief plunger.

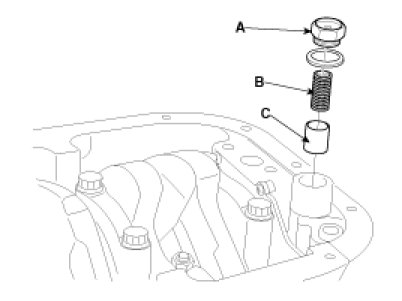

Remove the plug(A), spring(B) and relief plunger(C).






REASSEMBLY

RELIEF PLUNGER
1. Install the relief plunger.
Install relief plunger(C) and spring(B) into the front case hole, and install the plug(A).

Tightening torque :
39.2 - 49.0N.m (4.0 - 5.0kgf.m, 28.9 - 36.2lb-ft)
