Installation






INSTALLATION

NOTE:
- Thoroughly clean all parts to be assembled.
- Always use a new cylinder head and manifold gasket.
- Always use a new cylinder head bolt.
- The cylinder head gasket is a metal gasket. Take care not to bend it.
- Rotate the crankshaft, set the No.1 piston at TDC.

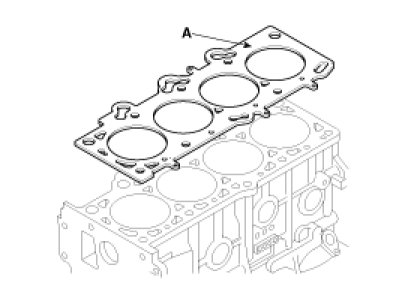

1. Install the cylinder head gasket(A) on the cylinder block.

NOTE:
Be careful of the installation direction.




2. Place the cylinder head quietly in order not to damage the gasket with the bottom part of the end.
3. Install the cylinder head bolts.
(1) Apply a light coat if engine oil on the threads and under the heads of the cylinder head bolts.
(2) Using 8mm and 10mm hexagon wrench, install and tighten the 10 cylinder head bolts and plate washers, in several passes, in the sequence shown.

Tightening torque :
29.4N.m (3.0kgf.m, 21.7lb-ft) + 90° -> Release all bolts -> 29.4N.m (3.0kgf.m, 21.7lb-ft) + 90°





4. Install the engine mounting support bracket fixing bolts(A).




5. Install the OCV(Oil Control Valve) filter(A).

Tightening torque :
40.2 - 50.0N.m (4.1 - 5.1kgf.m, 29.7 - 36.9lb-ft)






NOTE:
- Always use a new OCV(Oil Control Valve) filter gasket.
- Keep clean the OCV(Oil Control Valve) filter.

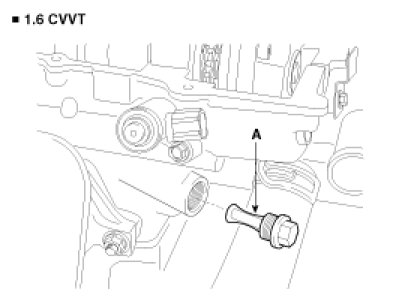

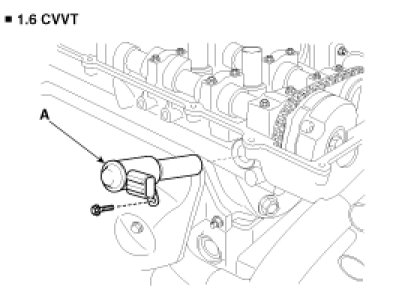

6. Install the OCV(Oil Control Valve)(A).

Tightening torque :
9.8 - 11.8N.m (1.0 - 1.2kgf.m, 7.2 - 8.7lb-ft)






CAUTION:
- Do not reuse the OCV(Oil Control Valve) when dropped.
- Keep clean the OCV(Oil Control Valve).
- Do not hold the OCV(Oil Control Valve) sleeve during servicing.
- When the OCV(Oil Control Valve) is installed on the engine, do not move the engine with holding the OCV(Oil Control Valve) yoke.

7. Install the camshafts.

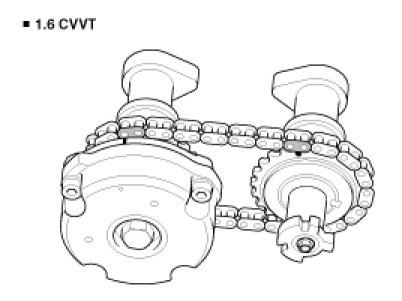

(1) Align the camshaft timing chain with the intake timing chain sprocket and exhaust timing chain sprocket as shown.

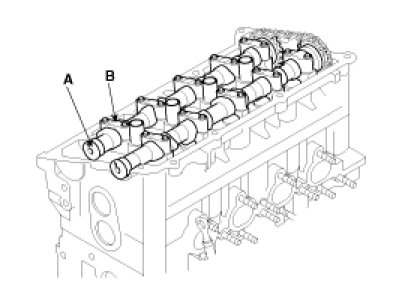

(2) Install the camshaft(A) and bearing caps(B).

Tightening torque :
11.8 - 13.7N.m (1.2 - 1.4kgf.m, 8.7 - 10.1lb-ft)





(3) Install the timing chain auto tensioner(A).

Tightening torque :
7.8 - 9.8N.m (0.8 - 1.0kgf.m, 5.8 - 7.2lb-ft)

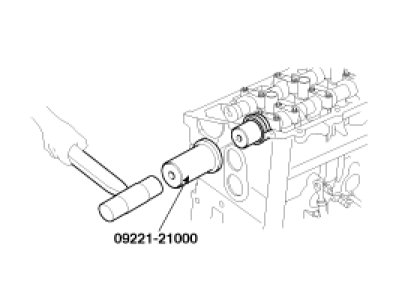

8. Using the SST (09221 - 21000), install the camshaft bearing oil seal.




9. Install the camshaft sprocket.
10. Install the cylinder head cover.

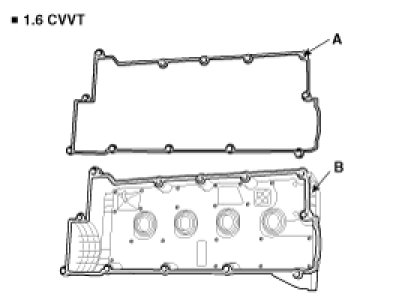

(1) Install the cylinder head cover gasket(A) in the groove of the cylinder head cover(B).





NOTE:

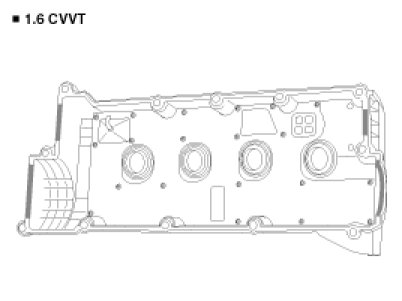

- Before installing the cylinder head cover gasket, thoroughly clean the cylinder head cover and the groove.
- When installing, make sure the cylinder head cover gasket is seated securely in the corners of the recesses with no gap.

(2) Apply liquid gasket to the head cover gasket at the corners of the recess.





NOTE:
- Use liquid gasket, loctite No. 5999.
- Check that the mating surfaces are clean and dry before applying liquid gasket.
- After assembly, wait at least 30 minutes before filling the engine with oil.

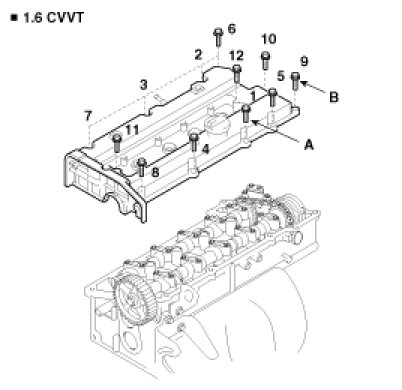

(3) Install the cylinder head cover(A) with bolts(B).
Uniformly tighten the bolts in several passes.
Pre-tighten all bolts by 3.9 - 4.9N.m (0.4 - 0.5kgf.m, 2.9 - 3.6lb-ft) and then tighten by the specified torque.

Tightening torque :
7.8 - 9.8N.m (0.8 - 1.0kgf.m, 5.8 - 7.2lb-ft)





11. Install the timing belt.
12. Install the intake manifold.
13. Install the exhaust manifold.
14. Install the ignition coil. .
15. Install the power steering pump.
16. Install the brake booster hose(B).
17. Connect the hose(A) of the PCSV (Purge Control Solenoid Valve) side.




18. Install the engine wire harness connectors and wire harness clamps to the cylinder head and the intake manifold.
(1) Install the wire harness bracket(E).
(2) Connect the ground cable(D).
(3) Connect the CMP(Camshaft position sensor) connector(C).
(4) Connect the ignition coil condenser connector(B).
(5) Connect the ignition coil connector(A).




(6) Connect the OCV(Oil Control Valve) connector(C).
(7) Connect the CKP(Crankshaft Position Sensor) connector(B).
(8) Connect the front oxygen sensor connector(A).




(9) Connect the ISA(Idle Speed Actuator) connector(B).
(10) Install the wire harness bracket(A).




(11) Connect the injector connectors (No.1,2) (E).
(12) Connect the injector connectors (No.3,4) (D).
(13) Connect the knock sensor connector(C).
(14) Connect the air conditioner compressor switch connector(B).
(15) Connect the rear oxygen sensor connector(A).




19. Connect the TPS (Throttle Position Sensor) connector (B).
20. Install the accelerator cable(A).




21. Install the fuel hose(B).
22. Install the heater hoses(A).




23. Install the upper radiator hose(A) and lower radiator hose(B).




24. Install the battery tray(A).




25. Install the intake air hose and air cleaner assembly.
(1) Install the air cleaner element and air cleaner lower cover(C).

Tightening torque :
7.8 - 9.8N.m (0.8 - 1.0kgf.m, 5.8 - 7.2lb-ft)


(2) Connect the ECM connector(A) and ECM connector(B) (A/T only).




(3) Install the intake air hose(D) and air cleaner upper cover(C).
(4) Connect the breather hose(B) to intake air hose(D).
(5) Connect the AFS(Air Flow Sensor) connector(A).




26. Install the under cover(A).




27. Install the engine cover(A).

Tightening torque :
3.9 - 5.9N.m (0.4 - 0.6kgf.m, 2.9 - 4.3lb-ft)





28. Install the battery and connect the battery terminals(A).




29. Fill with engine coolant.
30. Start the engine and check for leaks.
31. Recheck engine coolant level and oil level.
