Diagram Set SD971 (Blower & A/C Controls)

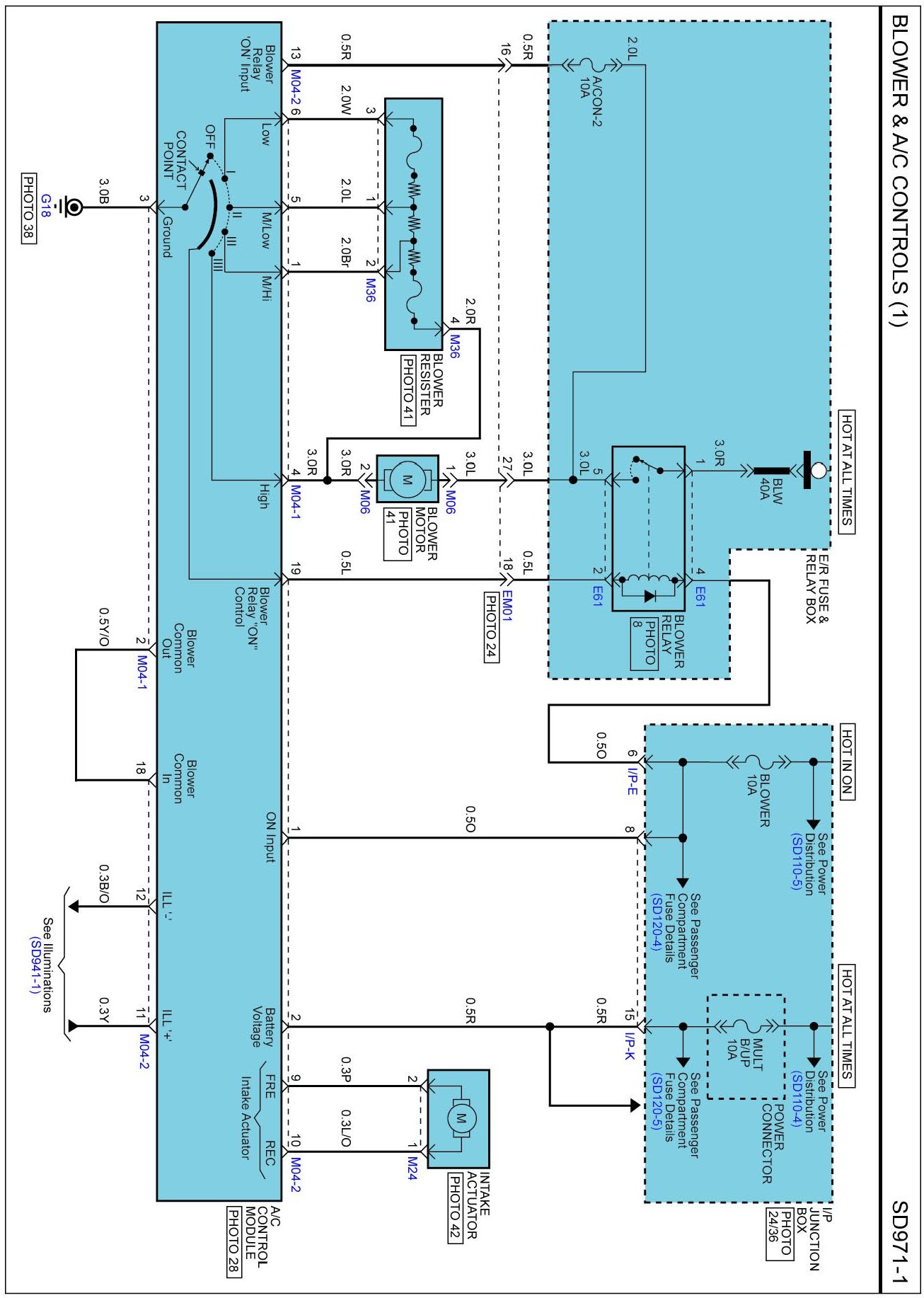

SD971-1 Blower & A/C Controls (1):

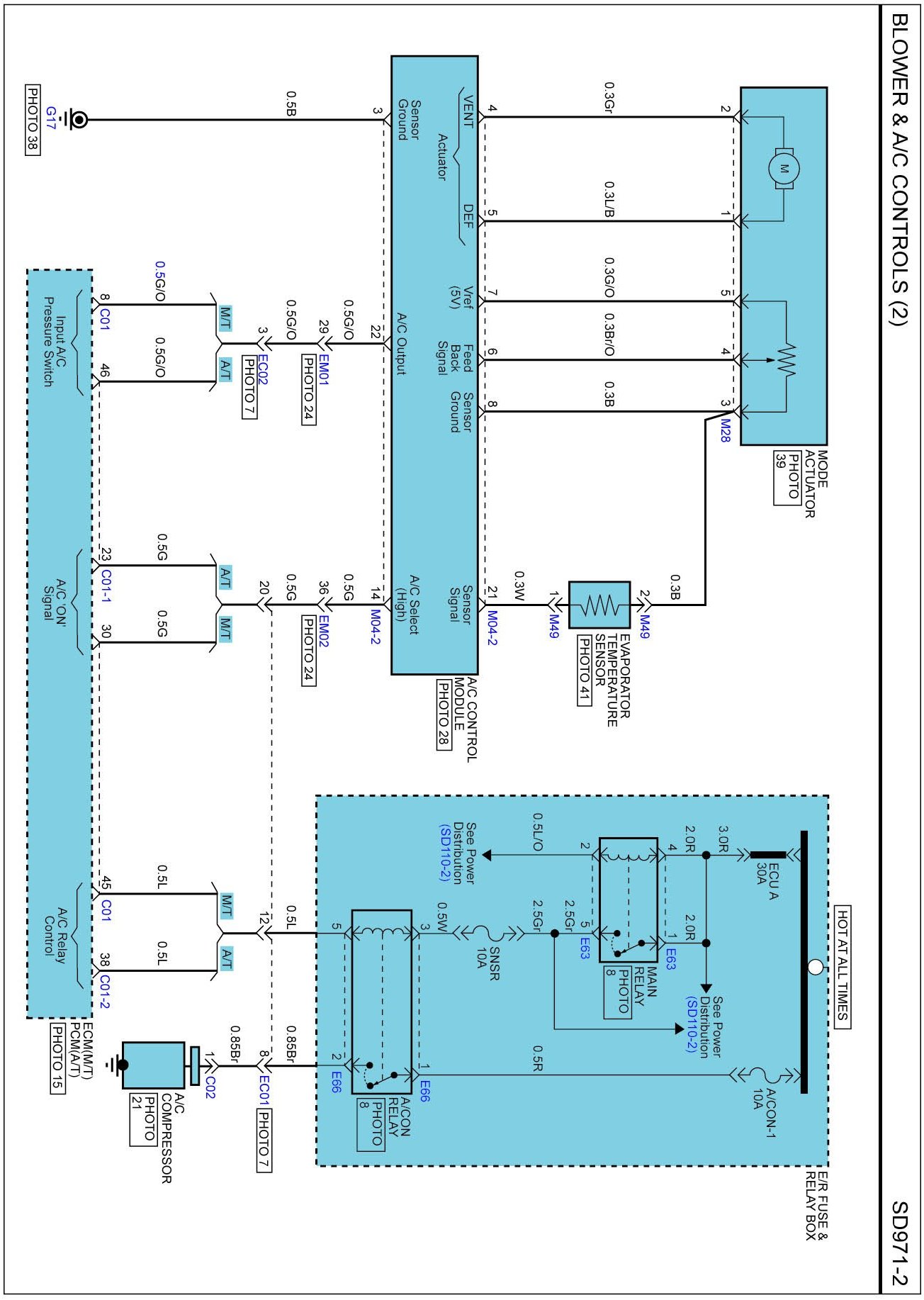

SD971-2 Blower & A/C Controls (2):
