Home >> Kia >> 2010 >> Rio L4-1.6L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set SD961 (Audio System)

Diagram Set SD961 (Audio System)

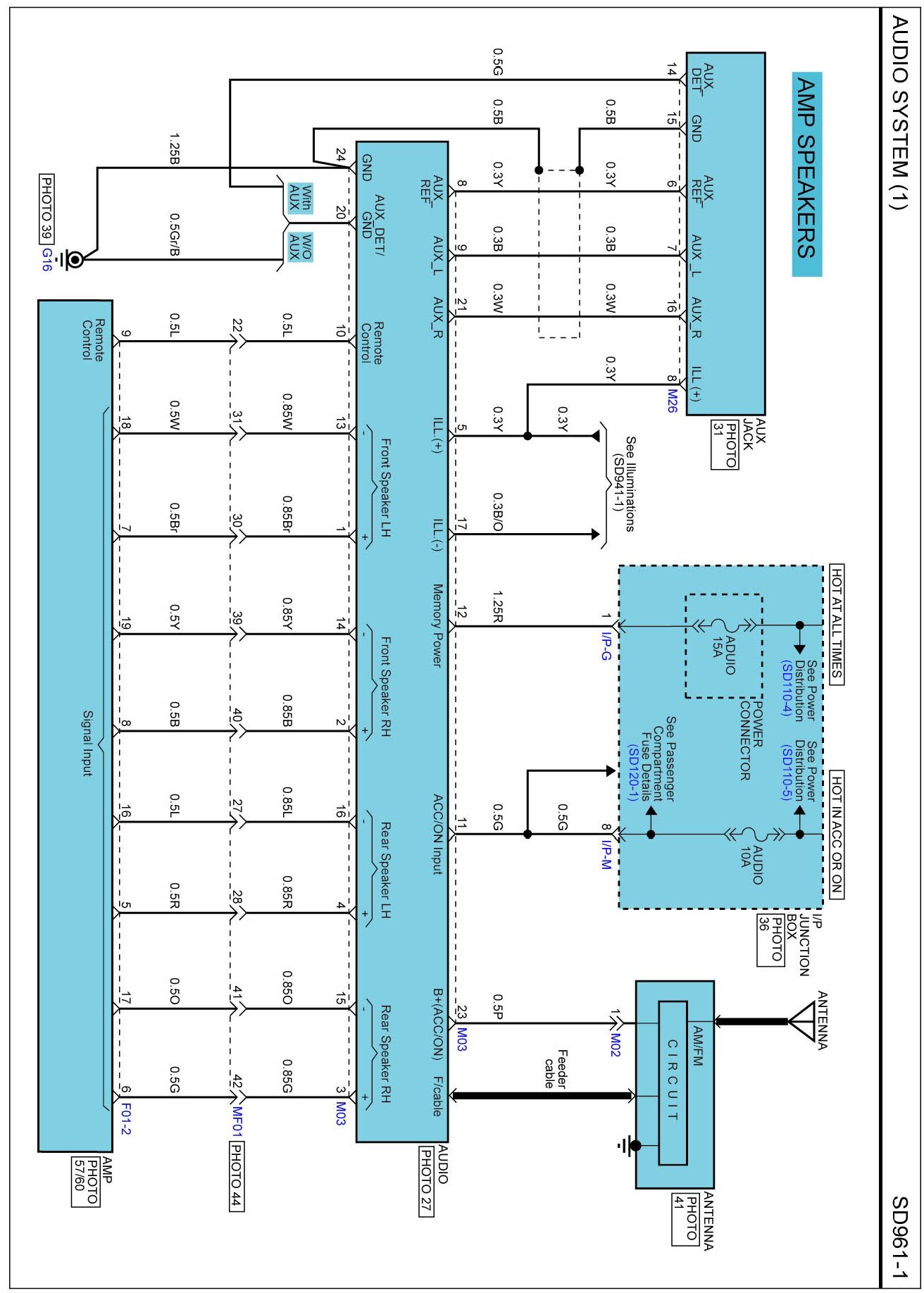

SD961-1 Audio System (1):

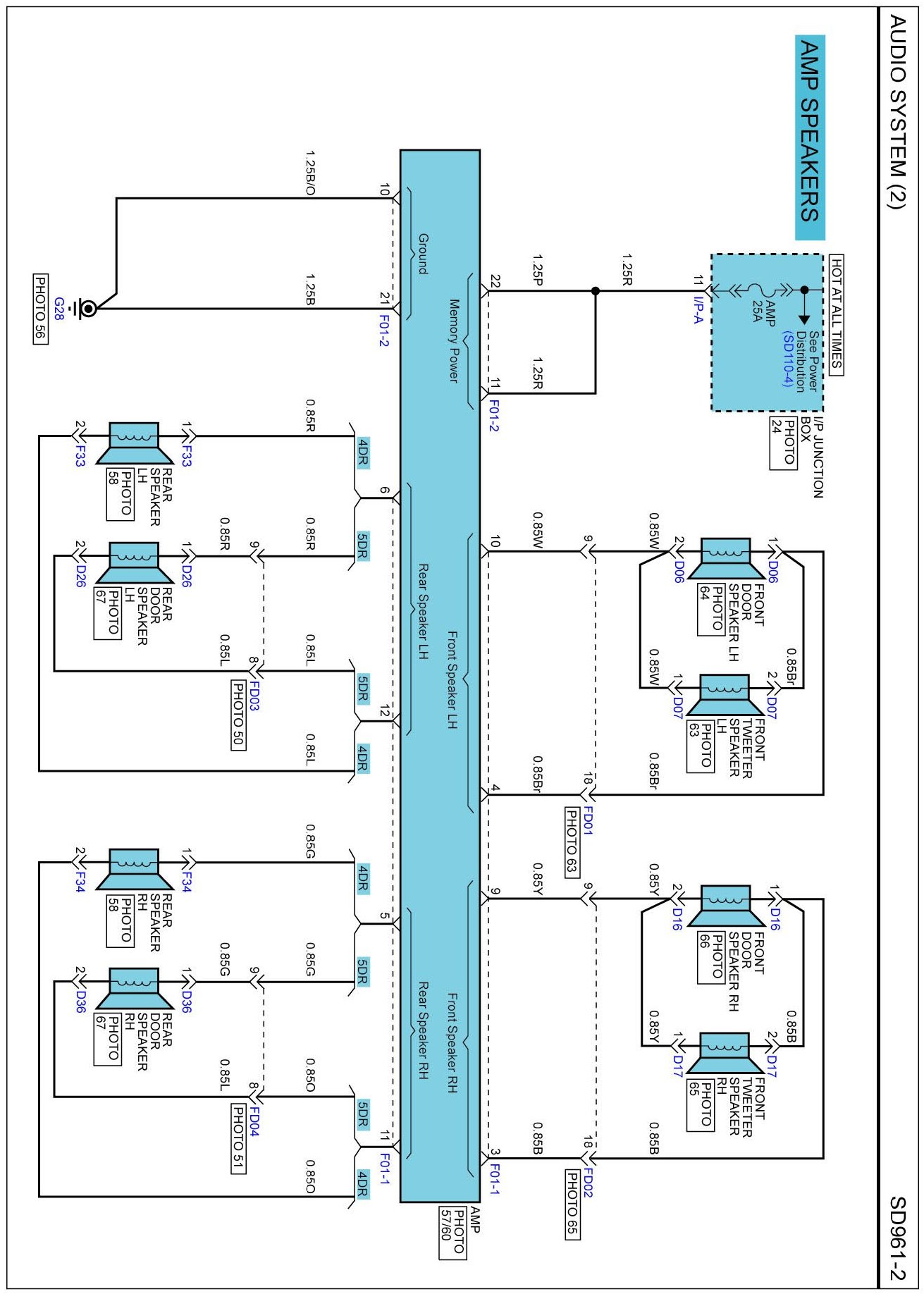

SD961-2 Audio System (2):

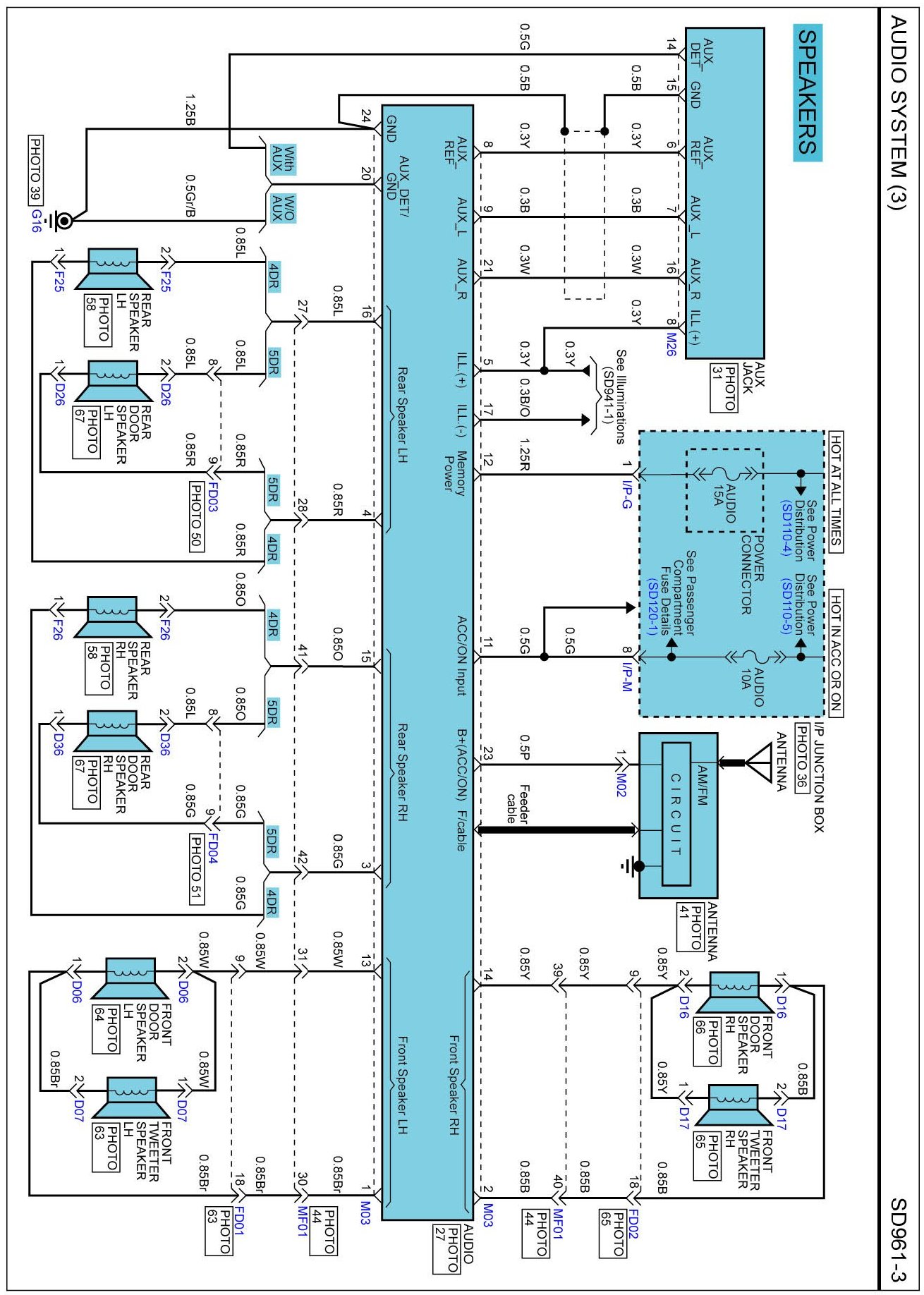

SD961-3 Audio System (3):
