Diagram Set SD313 (MFI Control System)

SD313-1 MFI Control System (M/T) (1):

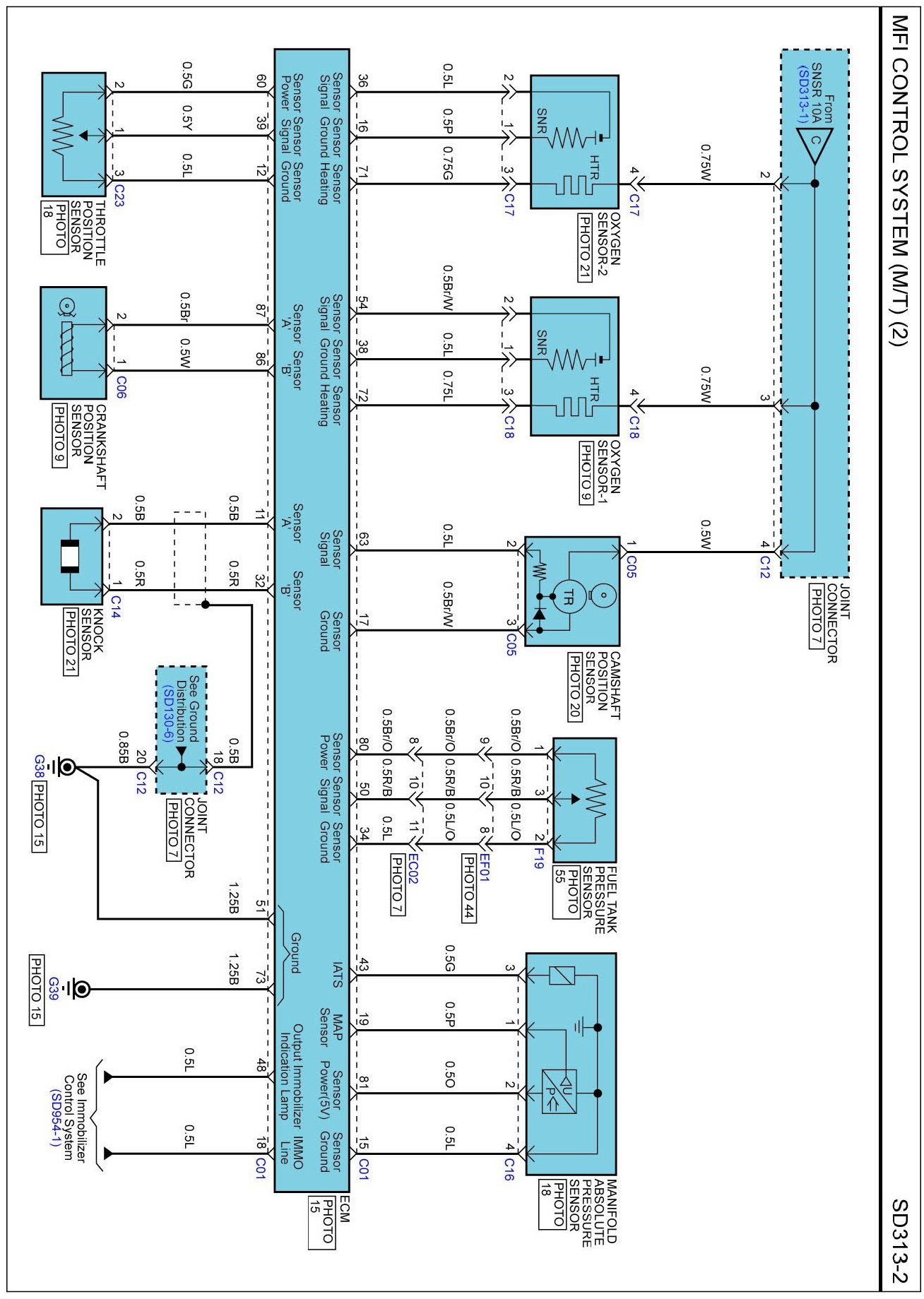

SD313-2 MFI Control System (M/T) (2):

SD313-3 MFI Control System (M/T) (3):

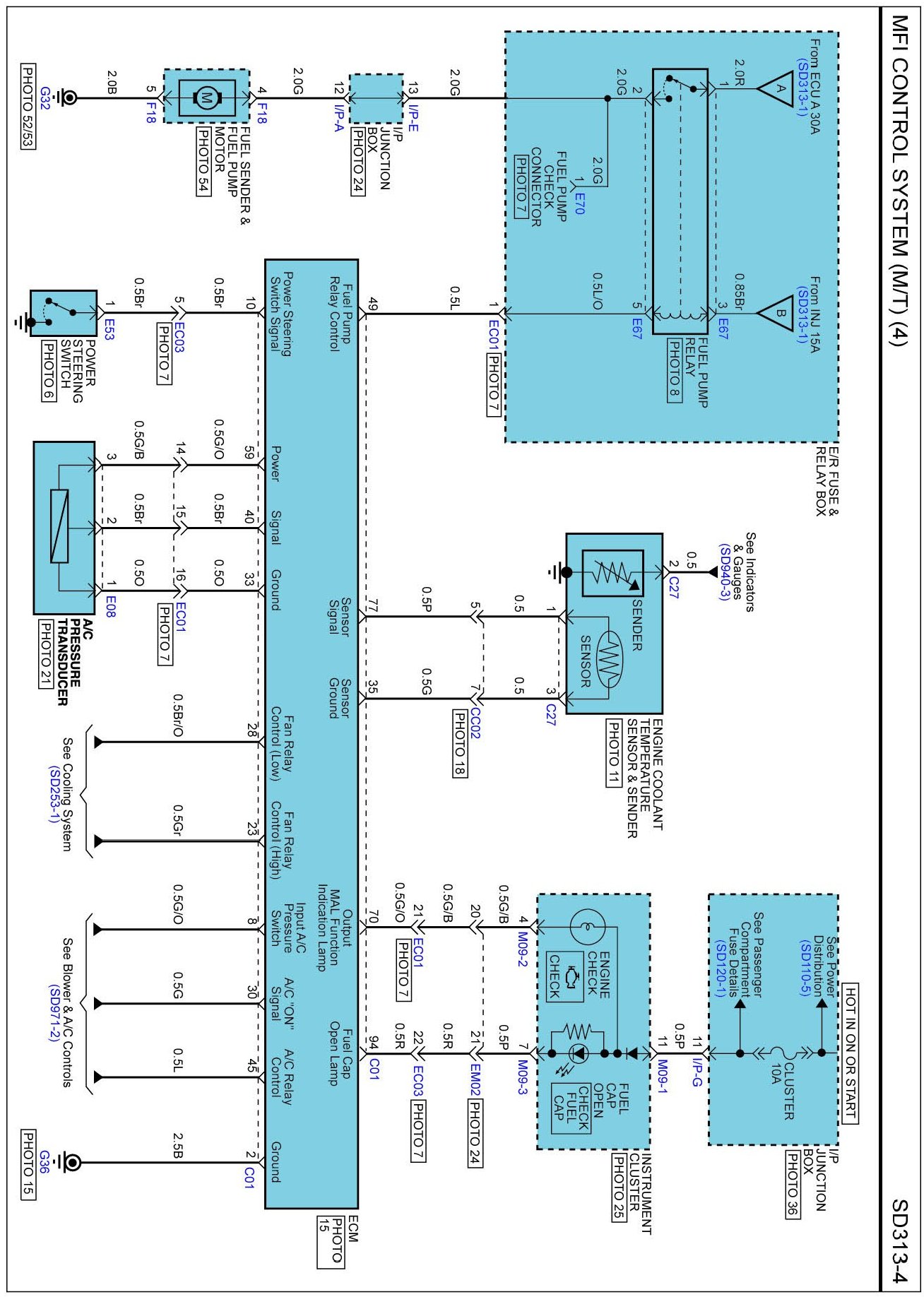

SD313-4 MFI Control System (M/T) (4):

SD313-7 MFI Control System (A/T) (1):

sd313-8 MFI Control System (A/T) (2):

sd313-9 MFI Control System (A/T) (3):

sd313-10 MFI Control System (A/T) (4):
