Cruise Control Servo: Service and Repair

Removal

1. Remove the battery negative cable and the cruise control cable from the throttle assembly by turning the throttle lever to the full-open position.
2. Remove the auto-cruise control cable.

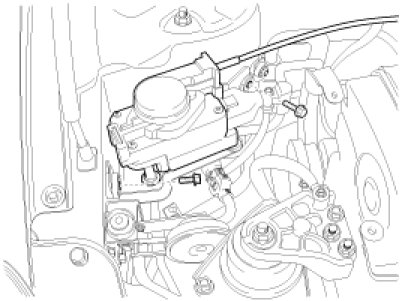

3. Remove the cruise control actuator unit & bracket assembly.




4. Installation is the reverse order of removal.

Installation

1. Install the cruise control actuator unit & bracket assembly.




2. Connect the cruise control cable.
(1) Set up the cruise cable T-end to cruise throttle lever.
(2) Hold the cruise cable grommet to the accel wire bracket certainly.
(3) Hold the clip to the cruise control cable.
3. Adjust the cruise control cable.
Cable should have approximately 1mm (0.039in.) slack off with actuator against stop.

CAUTION:
Take special precaution to prevent severe bending.

4. Connect the actuator connector and battery negative cable.
