Home >> Kia >> 2010 >> Rio L4-1.6L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Initial Inspection and Diagnostic Overview >> Standard Flow of Diagnostic Troubleshooting

Standard Flow of Diagnostic Troubleshooting

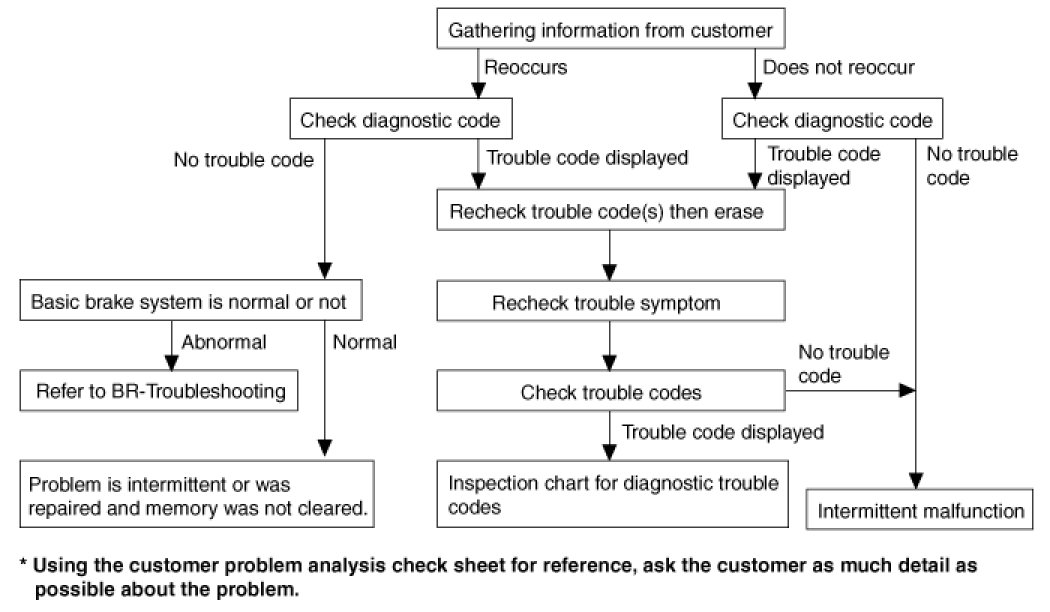

STANDARD FLOW OF DIAGNOSTIC TROUBLESHOOTING
