Repair Procedures

REPLACEMENT

SEAT ASSEMBLY REPLACEMENT

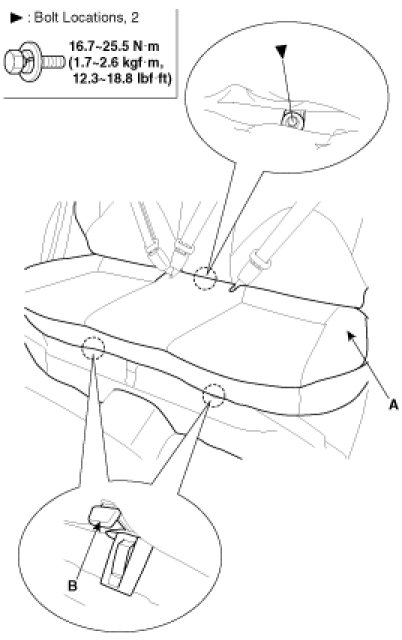

1. Loosen the rear seat cushion mounting bolts, then remove the rear seat cushion(A) after pull the stopper(B).

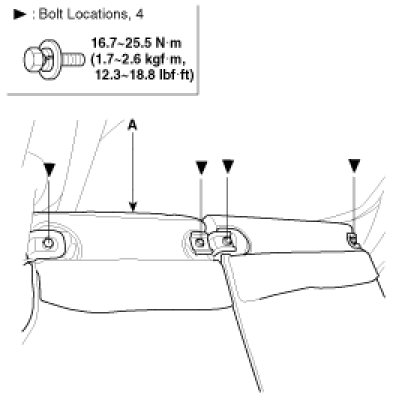

2. Loosenig the seat belt mounting bolt, remove the seat back(A).




3. Installation is the reverse of removal.
