Seat Cushion: Service and Repair

REPLACEMENT

SEAT CUSHION COVER REPLACEMENT
1. Remove the front seat assemble.

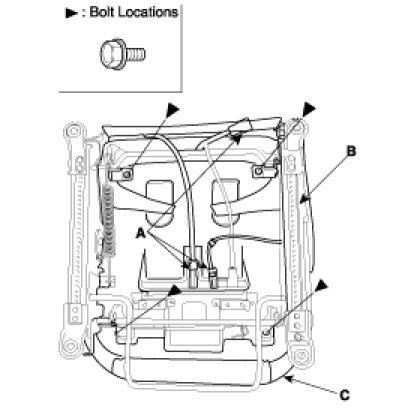

2. Disconnect the connector(A) then remove the track assemble(B) from cushion frame(C).




3. Remove the scuff band(A).
4. Remove the connector(B) then disconnect the protector from cushion frame(C).

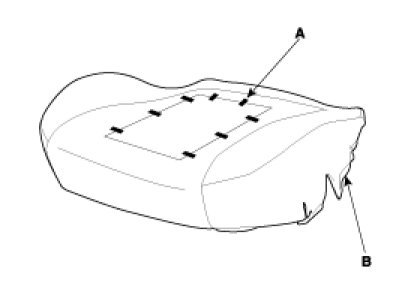

5. After removing the hogring clips(A) on the front of seat cushion and remove the seat cushion(B).




6. Installation is the reverse of removal.

NOTE:

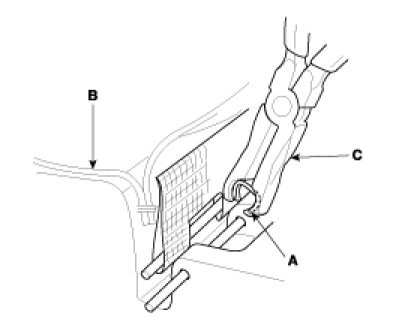

- To prevent wrinkles, make sure the material is stretched evenly over the over (B) before securing the hogring clips (A).
- Replace the hogring clips with new ones using special tool (C).
