Seat Back Frame: Service and Repair

REPLACEMENT

SEAT BACK FRAME REPLACEMENT
1. Remove the recliner cover, knob and height knob.

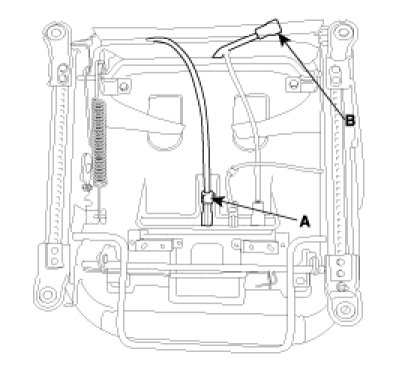

2. Disconnect the airbag connect(A), heater connect(B).




3. Disconnect the seat back frame(B) from seat track assembly(A).




4. Remove the seat back cover.
5. Remove the head rest and head rest guide.
6. Remove the seat back cover and sponge, from frame.

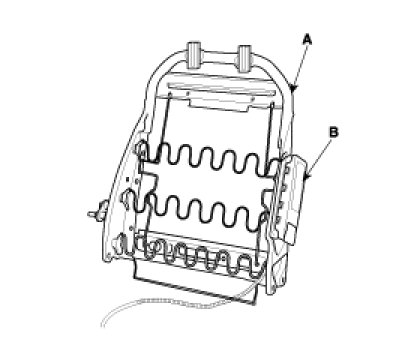

7. After loosening seat back frame mounting bolts, remove the seat back frame(A).

NOTE:
- Remove the side air bag for replacing side air bag installation seat.
- Be fore service, be fully aware of precaution and service procedure relevant to air bag.




8. Installation is the reverse of removal.
