Feul Fill Door Release Handle

REPLACEMENT

FUEL FILL DOOR RELEASE HANDLE REPLACEMENT

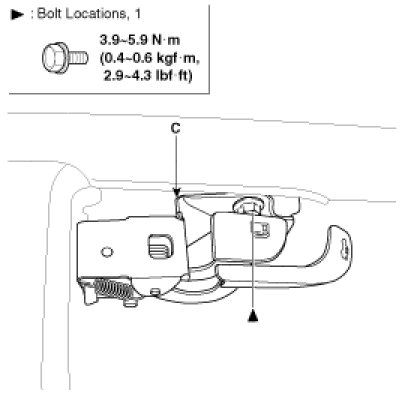

1. Remove the handle cover(A).




2. After loosening the mounting bolt, remove the releas handle assemble(C).




3. After disconnecting the trunk release handle cable(A), fuel fill door releas handle cable(B), remove the release handle(C).




4. Installation is the reverse of removal.

NOTE:
- Make sure the fuel fill door opens properly and locks securely.
