Rear Door Latch: Service and Repair

REPLACEMENT

REAR DOOR LATCH REPLACEMENT
1. Remove the rear door trim.
2. Remove the door trim seal.
3. Remove the inside handle.

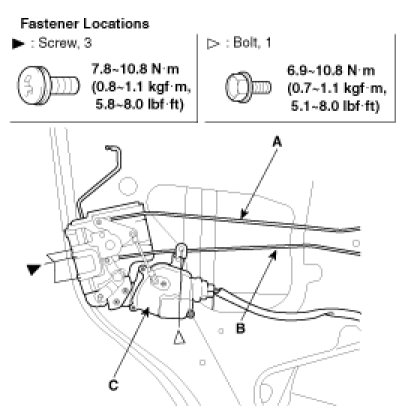

4. Disconnect the lock cable(A), out side handle cable(B).
5. After loosen the latch mounting bolts, remove the latch assemble(C).




6. Installation is the reverse of removal.

NOTE:
- Make sure the door lock and opens properly.
