Engine Identification Number

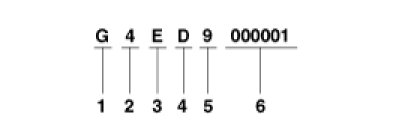

Engine Number




1. Engine fuel
- G = Gasoline
2. Engine range
- 4 = 4 cycle 4 cylinder
3. Engine development order
- E = ALPHA Engine
4. Engine capacity
- D = 1,599cc
5. Production year
- 9 : 2009, A : 2010, B : 2011, C : 2012, D : 2013.
6. Engine production sequence number
- 000001 - 999999

Transaxle Number

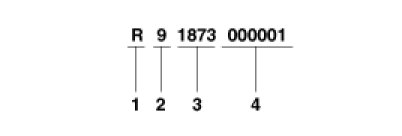

Manual




1. Model
- R = M5CF1
2. Production year
- 9 : 2009, A : 2010, B : 2011, C : 2012, D : 2013.
3. Gear ratio(Tooth number)
Differential drive gear tooth number / Output shaft gear tooth number
- 1873 = 73/18 = 4.056
4. Transaxle production sequence number
- 000001 - 999999

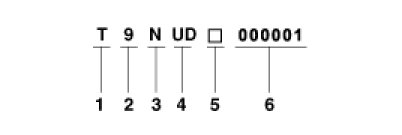

Automatic




1. Model
- T = A4AF3
2. Production year
- 9 : 2009, A : 2010, B : 2011, C : 2012, D : 2013.
3. Gear ratio
- N = 4.041
4. Detailed classification
- UD = 1.4 DOHC
- WD = 1.6 CVVT
5. Spare
6. Transaxle production sequence number
- 000001 - 999999
