Speakers

Replacement

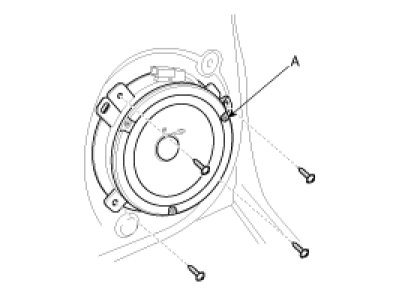

Front Speaker
1. Remove the front door trim panel .
2. Remove the front speaker (A) after removing 4 screws.




3. Installation is the reverse of removal.

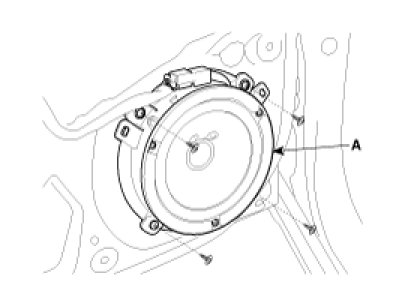

Rear Speaker (4 Doors)
1. Remove the rear door trim panel .
2. Remove the rear speaker (A) after removing 4 screws.




3. Installation is the reverse of removal.

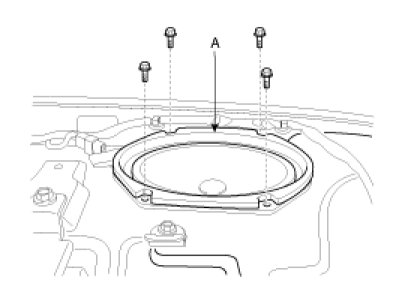

Rear Speaker (5 Doors)
1. Remove the rear seat .
2. Remove the rear package tray .
3. Remove the rear speaker (A) after removing 4 bolts.




4. Installation is the reverse of removal.

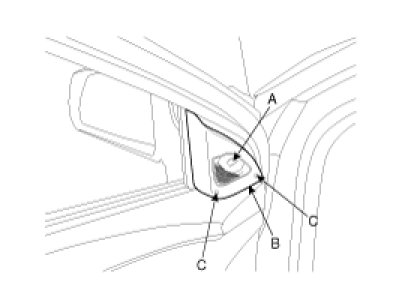

Tweeter Speaker
1. Remove the front door quadrant inner cover(B) .
2. Remove the tweeter speaker after disconnecting the connector(A).
Take care of fixing clips(C).




3. Installation is the reverse of removal.

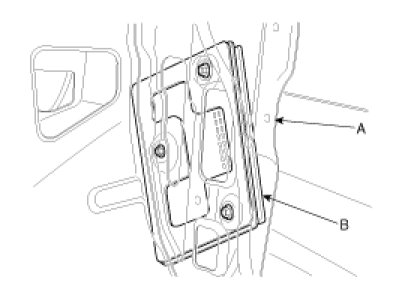

External Amplifier (4 Doors)
1. Remove the right luggage side trim.
2. Remove the external amplifier (B) from the quarter inner panel (A) after removing 3 nuts.




3. Installation is the reverse of removal.

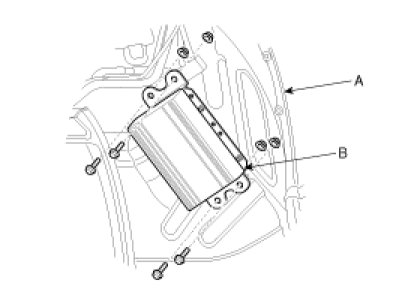

External Amplifier (5 Doors)
1. Remove the right luggage side trim.
2. Remove the external amplifier (B) from the quarter inner panel (A) after removing 4 bolts.




3. Installation is the reverse of removal.

Inspection

1. Troubleshooting for Speaker
(1) Basic inspection of speaker
Inspect the sound from speaker after verifying that the speaker mounting screws is removed and the wiring connector is connected precisely to remove vibration transmitted from body trims and surrounding parts.




(2) Case Troubleshooting






CAUTION:
- During dealing of speaker
- Do not damage the speaker with impact as like a drop and a throw.
- Be careful not to cover water and oil over the speaker.
- Caution during dealing of speaker because the material of diaphragm is paper which is easy to be torn by impact and external force.
- When modifying audio system as customer pleases, this does electric damage to speaker.
- And, in this case the speakers are not covered by the manufacturer's warranty.
