Remote Control: Testing and Inspection

Inspection

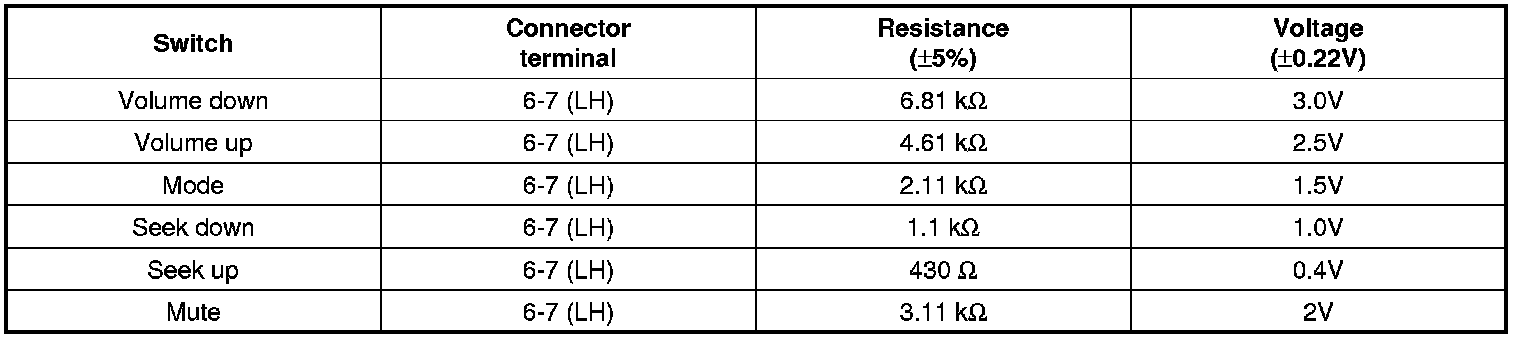

1. Check for resistance between No.6 and No.7 terminals in each switch position.




[Audio System]






Inspection

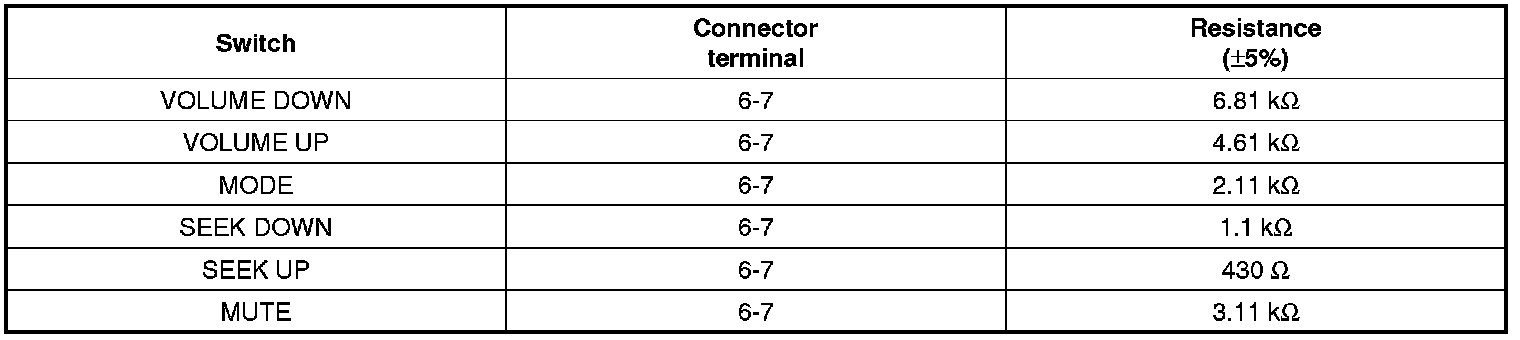

1. Check for resistance between No.6 and No.7 terminals in each switch position.




[Audio System]
