Hands Free Switch

Inspection

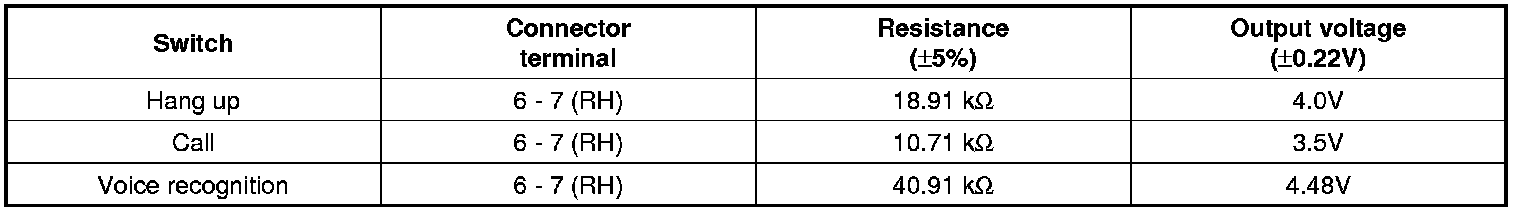

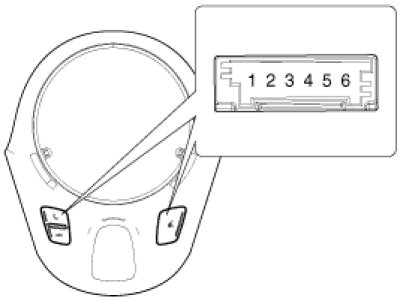

1. Check the hands free remote control switch for resistance between No.6 and No.7 terminals in each switch position.




[Audio + Bluetooth Hands Free + Voice]





2. Check the hands free remote control switch for resistance between No.4 and No.5 terminals in each switch position.




[Audio + Cruise + Bluetooth Hands Free + Voice]
