General Information

U0100 No ID From ECU

General Information

Component Location





General Description

The TCM can either receive data from the Engine Control Module or ABS control module, or it can send data to the ECM and ABSCM by using CAN communication. The CAN communication is one of the vehicle communications method, which is now widely used to transfer the vehicle data.

DTC Description

The TCM can either receive data from the Engine Control Module or ABS control module, or it can send data to the ECM and ABSCM by using CAN communication. The CAN communication is one or the vehicle communications method, which is now widely used to transfer the vehicle data.

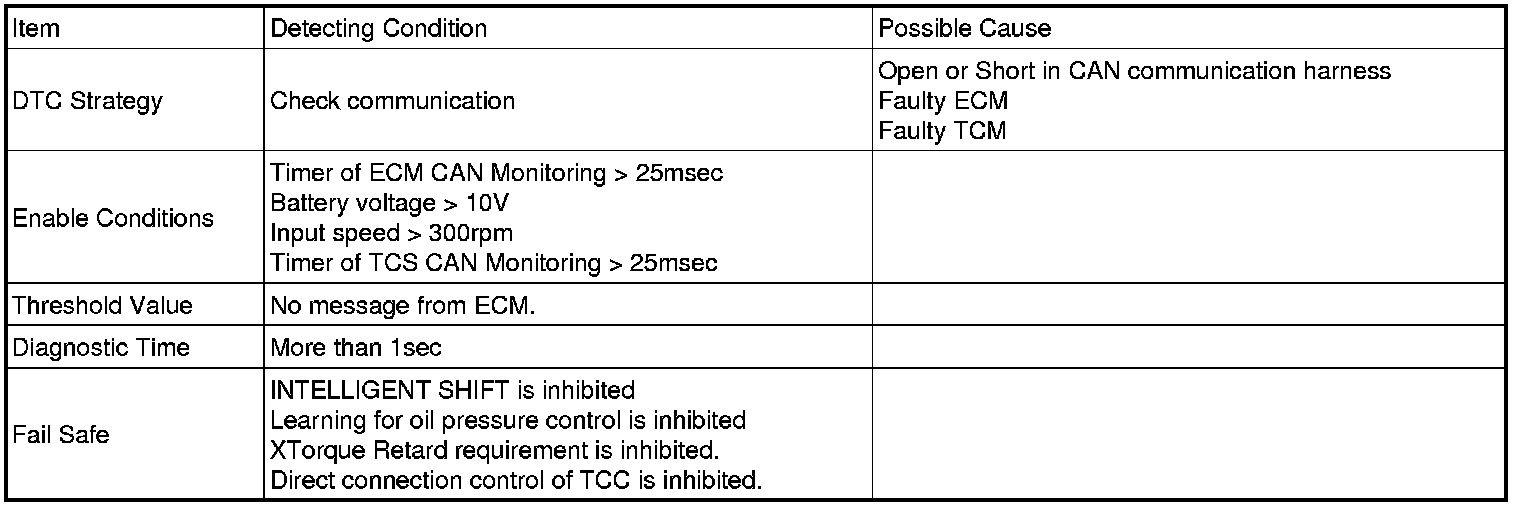

DTC Detecting Condition





Schematic Diagram
