Monitor DTC Status

P1709 K/D Switch

Open or Short (GND) - Scantool Diagnostics:_:Monitor Scantool Data

Monitor Scantool Data

1. Connect scantool to data link connector (DLC)
2. Engine "ON".

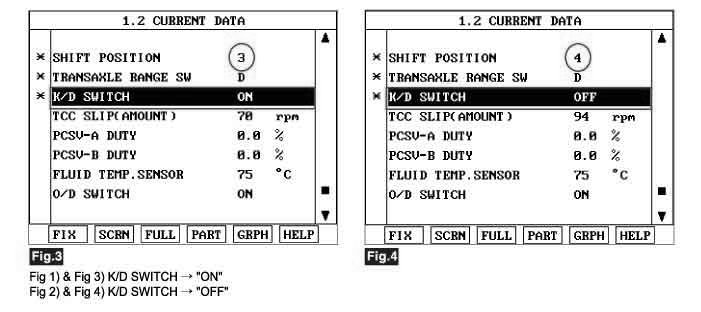

3. Monitor the "K/D SWITCH" parameter on the scantool.
4. Operate the vehicle from "1st" gear to "4th" gear








5. Does "K/D SWITCH" follow the referance data??
YES
1) Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was repaired and TCM (PCM) memory was not cleared. Throughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage.Repair or replace as necessary and go to "Verification Vehicle Repair" procedure
NO
1) Go to "W/Harness Inspection " procedure
