Monitor DTC Status

P0760 Shift Control Solenoid Valve-C Circuit

Open or Short (GND) - Scantool Diagnostics:_:Monitor Scantool Data

Monitor Scantool Data

1. Connect scantool to data link connector (DLC)
2. Engine "ON".
3. Measure voltage between terminal "6" of the sensor harness connector and chassis ground.
4. Select "N -> D"

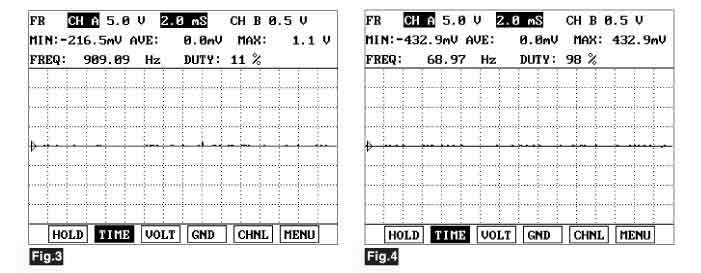

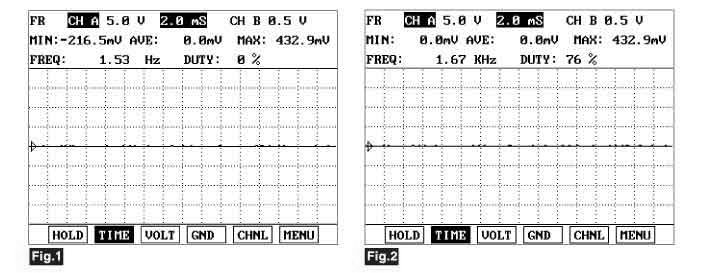

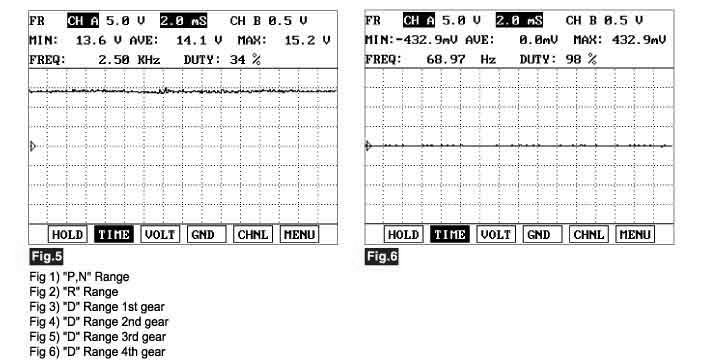

A. Specification: "D" Range 2nd gear- 0 V , "D " Range 3rd gear- 12 V.












5. Is "SCSV-C " within the specifications?
YES
1) Fault is intermittent caused by poor contact in the sensor's and/or TCM (PCM)'s connector or was repaired and TCM (PCM) memory was not cleared. Throughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage.Repair or replace as necessary and go to "Verification Vehicle Repair" procedure
NO
1) Go to "W/Harness Inspection " procedure
