W/Harness Inspection

P0743 Damper Clutch Control Solenoid Valve : Open or Short (GND)

Inspection/Repair - W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?
YES
1) Repair as necessary and then go to "Verification of Vehicle Repair" procedure
NO
1) Go to "Signal Circuit Inspection" procedure

Signal Circuit Inspection

1. Disconnect "A/T SOLENOID VALVE" connector.
2. IGNITION "ON", ENGINE "OFF"

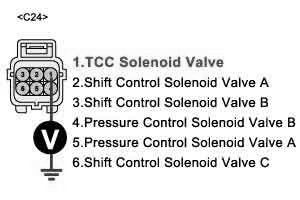

3. Measure voltage between terminal "1" of the sensor harness connector and chassis ground.
A. Specification: Approx. 6 V




4. Is voltage within specifications?
YES
1) Go to "Component Inspection" procedure
NO
1) Check for open or short in harness. Repair as necessary and Go to "Verification Vehicle Repair" procedure
2) If signal circuit in harness is OK, Go to "Check PCM/TCM" of the "Component Inspection" procedure.
