General Information

P0733 Gear 3 Incorrect Ratio

General Information

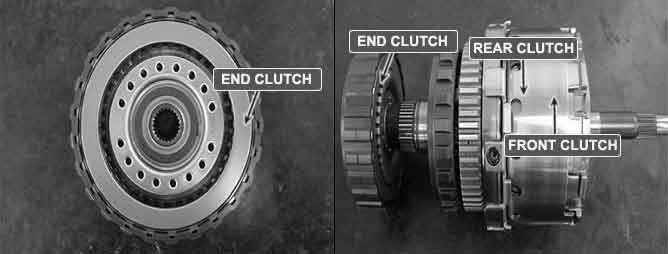

Component Location





General Description

The value of the input shaft speed should be equal to the value of the output shaft speed, when multiplied by the 3rd gear ratio, while the transaxle is engaged in the 3rd gear. For example, if the input speed is 1000 rpm and the 3rd gear ratio is 1.000, then the output speed is approx. 1000 rpm.

DTC Description

This code is set if the value of input shaft speed is not equal to the value of the output shaft, when multiplied by the 3rd gear ratio, while the transaxle is engaged in 3rd gear. This malfunction is mainly caused by mechanical troubles such as control valve sticking or solenoid valve malfunctioning rather than an electrical issue.

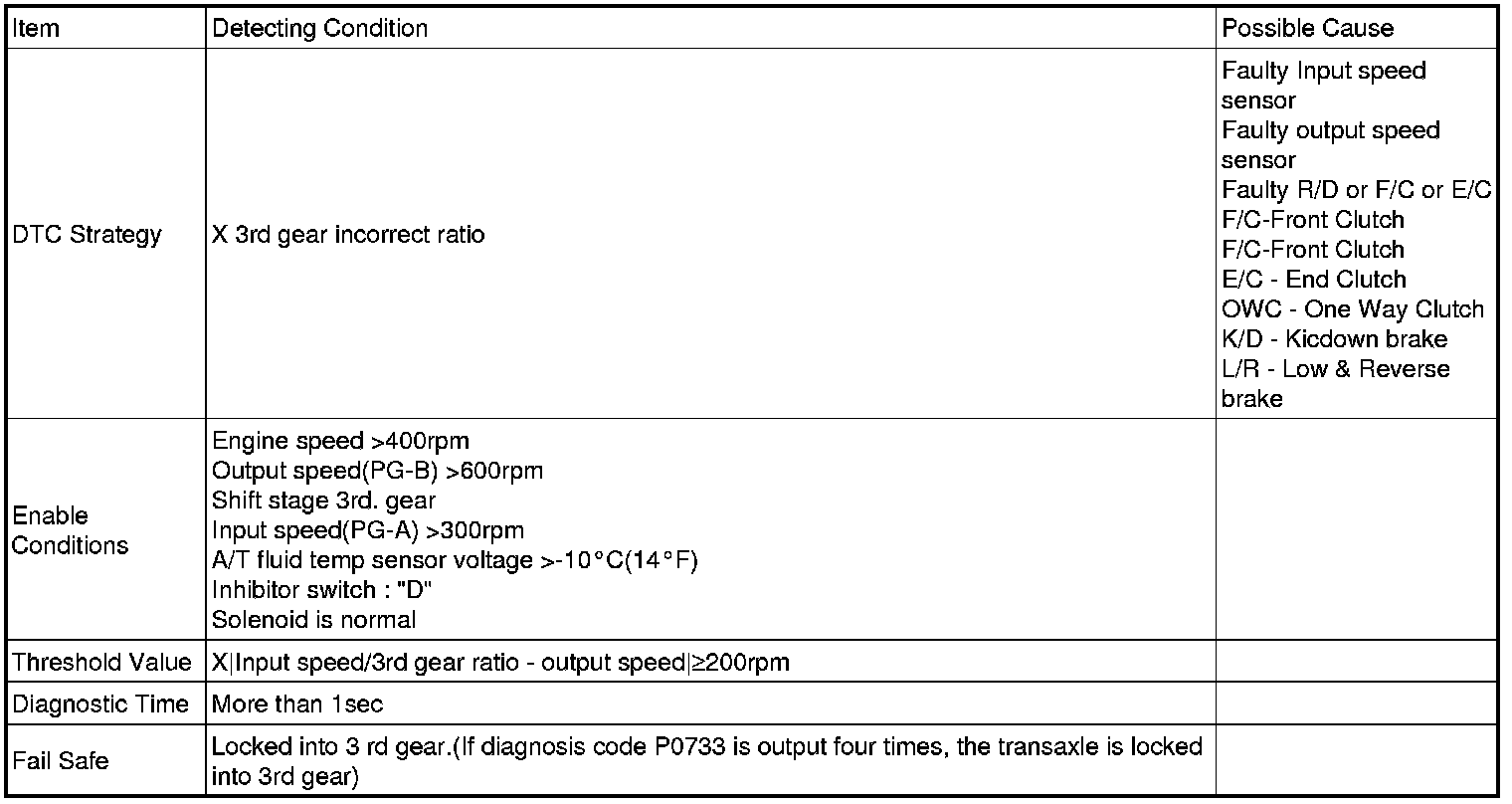

DTC Detecting Condition

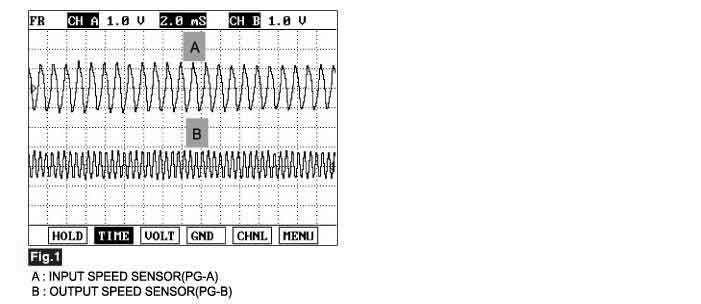

Signal Waveform
