General Information

P0717 A/T Input speed Sensor Circuit Low Input

General Information

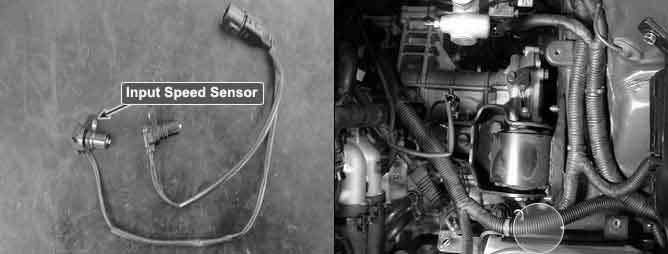

Component Location





General Description

The input (turbine) speed sensor outputs waveform signals according to the revolutions of the input shaft ,installed in front of End clutch retainer,of the transmission. The TCM determines the input shaft speed by calculating the frequency of the pulses. This value is mainly used to control the optimum fluid pressure during shifting.

DTC Description

The TCM sets this code if an output pulse-signal is not detected, from the INPUT SPEED SENSOR (PG-A), when the vehicle is running faster than 30 km/h. The Fail-Safe function will be set by the TCM if this code is detected.

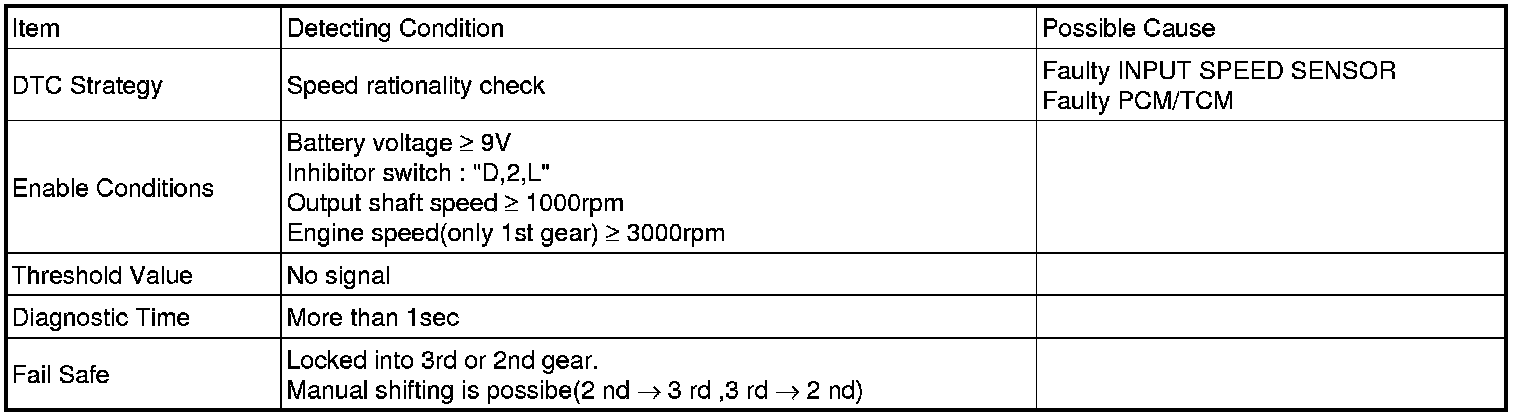

DTC Detecting Condition





Specification

Input shaft & Output shaft speed sensor
Type : Magnetic Inductive Type
X sensor body and sensor connector have been unified as one.

Schematic Diagram





Signal Waveform
