General Information

P0703 Stop Lamp Switch (Brake SW)

Short (+B) - General Information

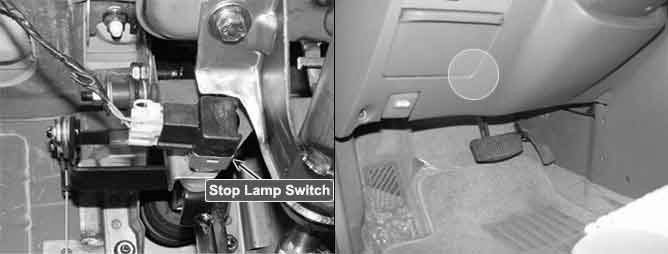

Component Location





General Description

The New Alpha Automatic Transmission's function, of intelligence control, is based on the Fuzzy Control System. The Fuzzy Control System determines optimal gear positions as related to driver's intention and current driving conditions. The Brake Switch provides important information by deciding whether the vehicle is decelerating by the depression of the brake pedal, or if the speed is decreasing because the vehicle is running uphill.

DTC Description

The TCM sets this code if a Brake Switch signal is input continuously, for an extended period of time, when the vehicle is supposed to be running (moving).

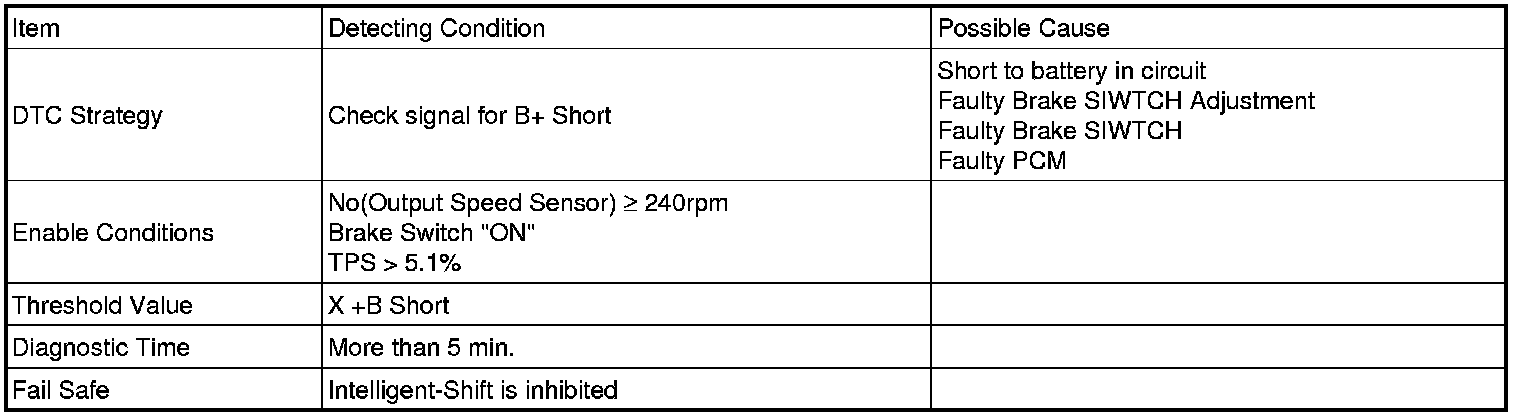

DTC Detecting Condition





Schematic Diagram

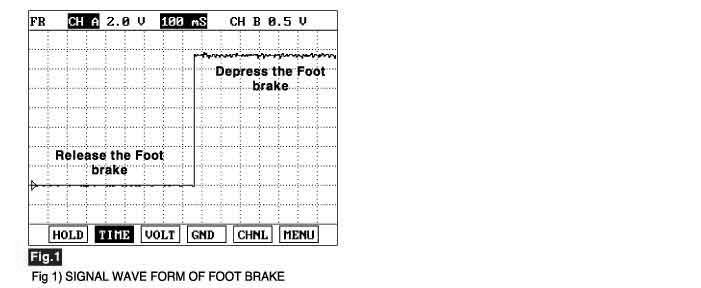

Signal Waveform
