P0562 System Voltage Low

General Information

Component Location





General Description

The Main Relay voltage is monitored for high or low voltage values that may indicate main relay, main relay circuit, or engine electrical system malfunctions.

DTC Description

If the system voltage is 2.54 - 10 V during 0.2 sec, PCM sets DTC P0562.

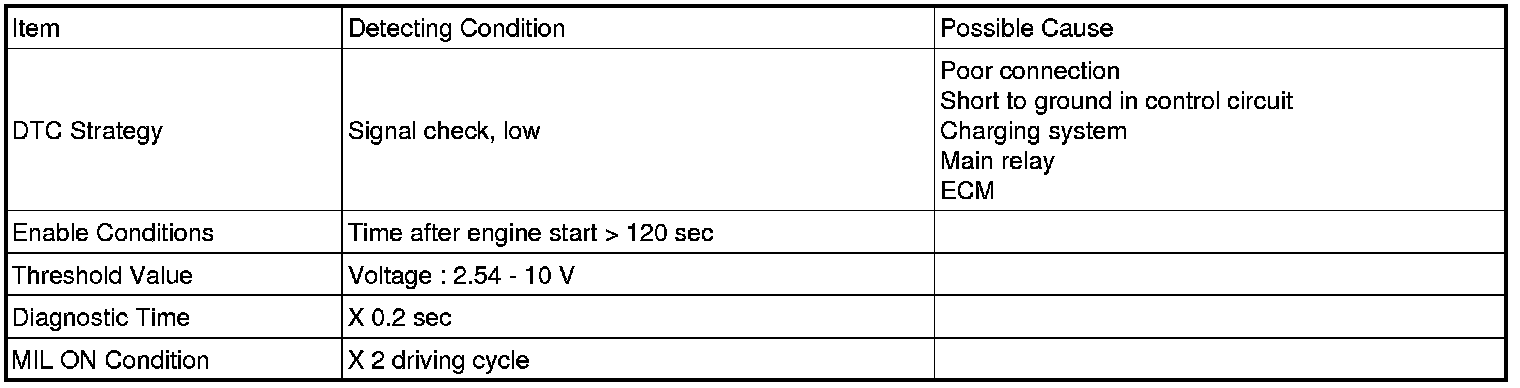

DTC Detecting Condition





Schematic Diagram
