General Information

P0560 System Voltage

General Information

Component Location





General Description

The Main Relay voltage is monitored for high or low voltage values that may indicate main relay, main relay circuit, or engine electrical system malfunctions.

DTC Description

If ECM detects malfunction in power supply system, ECM sets DTC P0560.

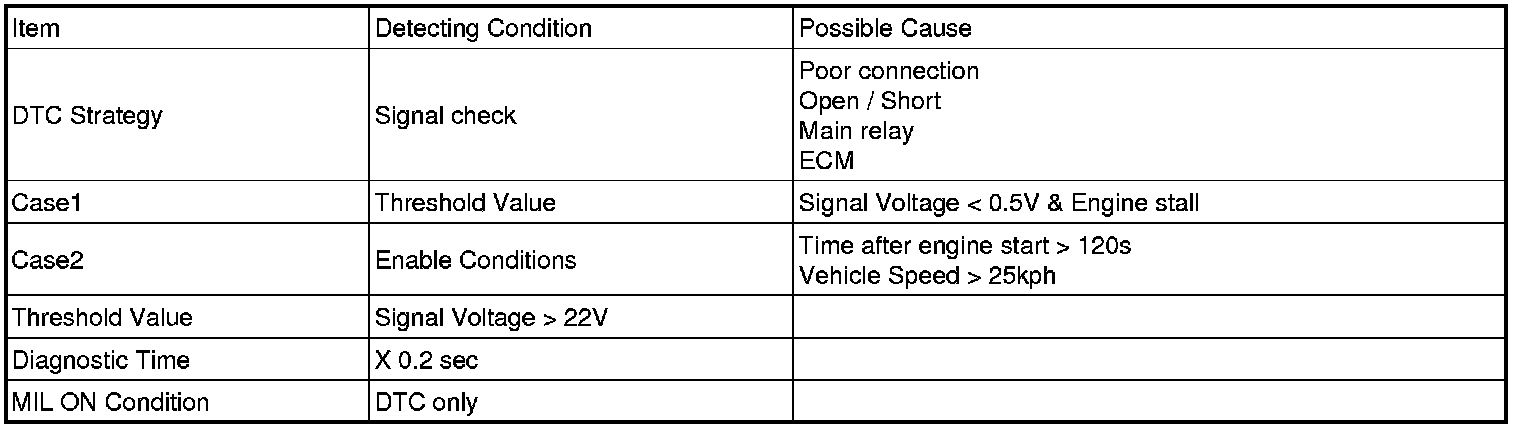

DTC Detecting Condition





Schematic Diagram
