General Information

P0532 A/C Refrigerant Pressure Sensor A Circuit Low Input

General Information

Component Location





General Description

An A/C refrigerant pressure sensor is installed near the expansion valve. This sensor is used by the ECM/PCM to evaluate A/C system pressure for the purposes of idle speed correction, cooling/condenser fan control, and A/C compressor control.

DTC Description

If signal is below 0.195 V under detecting condition, PCM sets P0532.

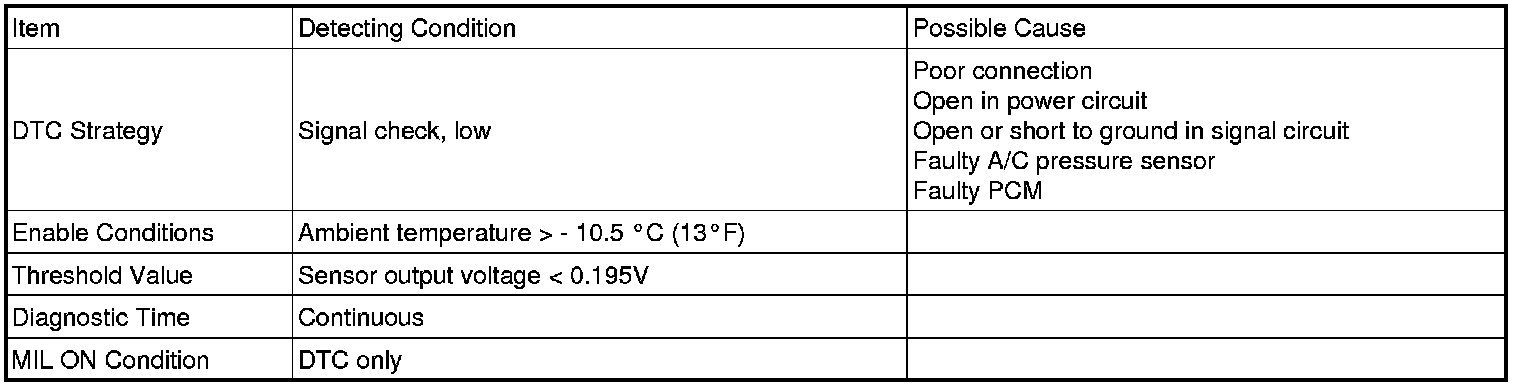

DTC Detecting Condition





Specification





Schematic Diagram
