General Information

P0327 Knock Sensor 1 Circuit Low Input

General Information

Component Location





General Description

Knocking is a phenomenon characterized by undesirable vibration and noise that can cause engine damage. A knock sensor (KS) is mounted on the cylinder block and senses engine knocking. A knocking vibration from the cylinder block is applied as pressure to the piezoelectric element. A knock sensor (KS) detects vibration when RPM rises or drops and generates voltages based on this vibration. The PCM controls the ignition timing based on the amplitude and frequency of the knock sensor signal. For example, if engine knocking occurs, the ignition timing is retarded to prevent it.

DTC Description

If normalized reference signal is less than the lower limit based on RPM , P0327 is set.

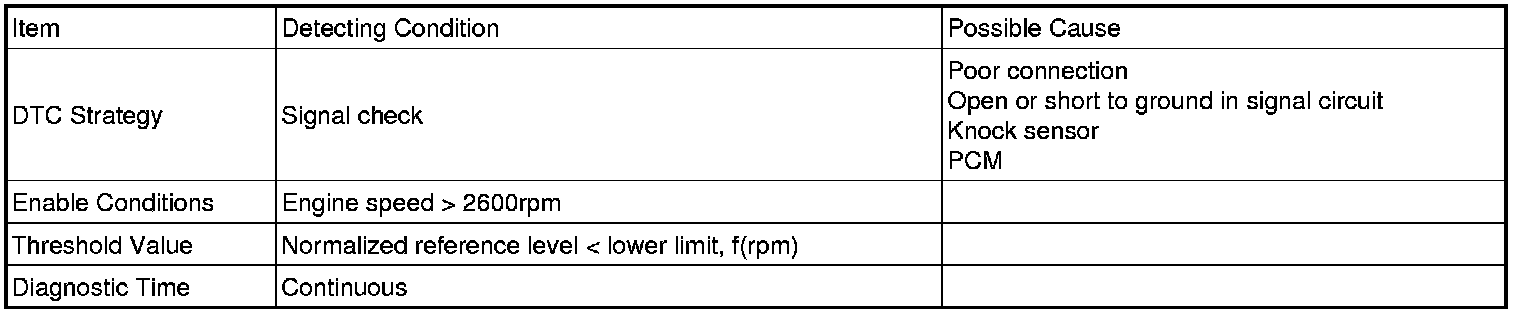

DTC Detecting Condition





Specification





Schematic Diagram





Signal Waveform
