P0136 O2 Sensor Circuit (Sensor 2)

General Information

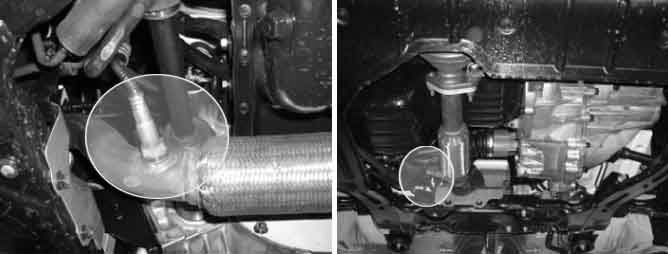

Component Location





General Description

HO2S (B1/S2) is in the rear side of Catalytic Converter to check the proper operation of catalyst. Oxygen density after the catalytic converter has to be within specific range (around 0.5 V when there is no acceleration and deceleration.)
If the oxygen density changes in accordance with HO2S (B1/S1), it means the poor performance of catalytic converter.

DTC Description

In case the sensor output is 0.4 - 0.52 V during 600 sec or the internal resistance is over 40 kOhms under enable conditions, ECM sets DTC P0136. (This DTC might be caused by the malfunction of Heater circuit, so, check the heater circuit first.)

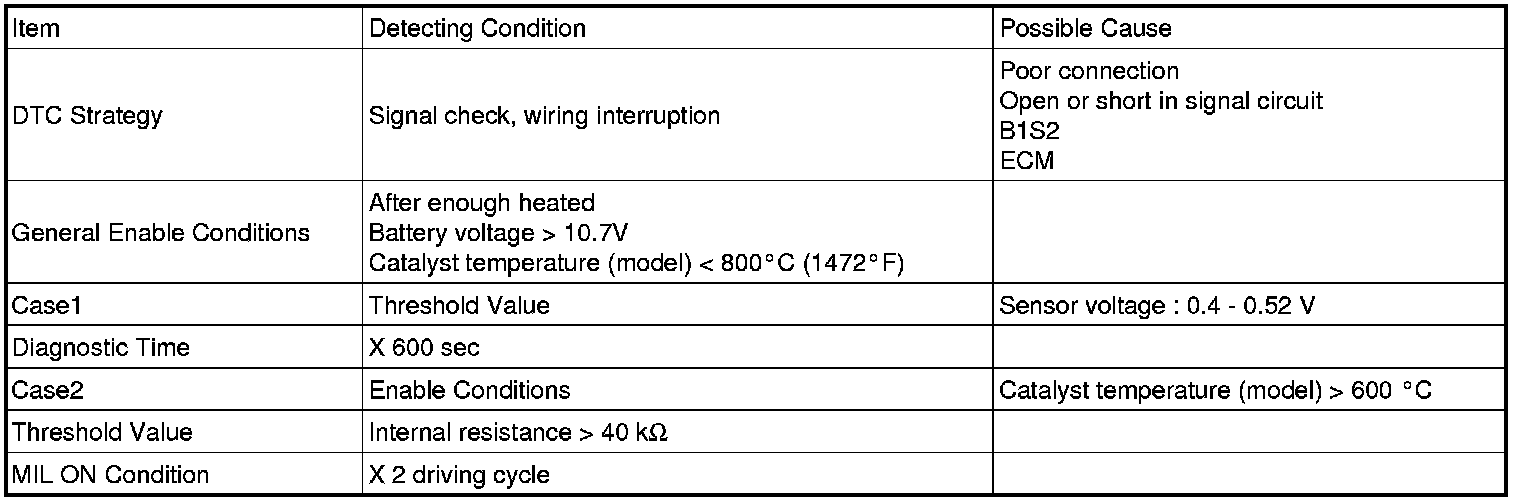

DTC Detecting Condition





** B1S2 : upstream oxygen sensor / B1S2 : downstream oxygen sensor

Specification

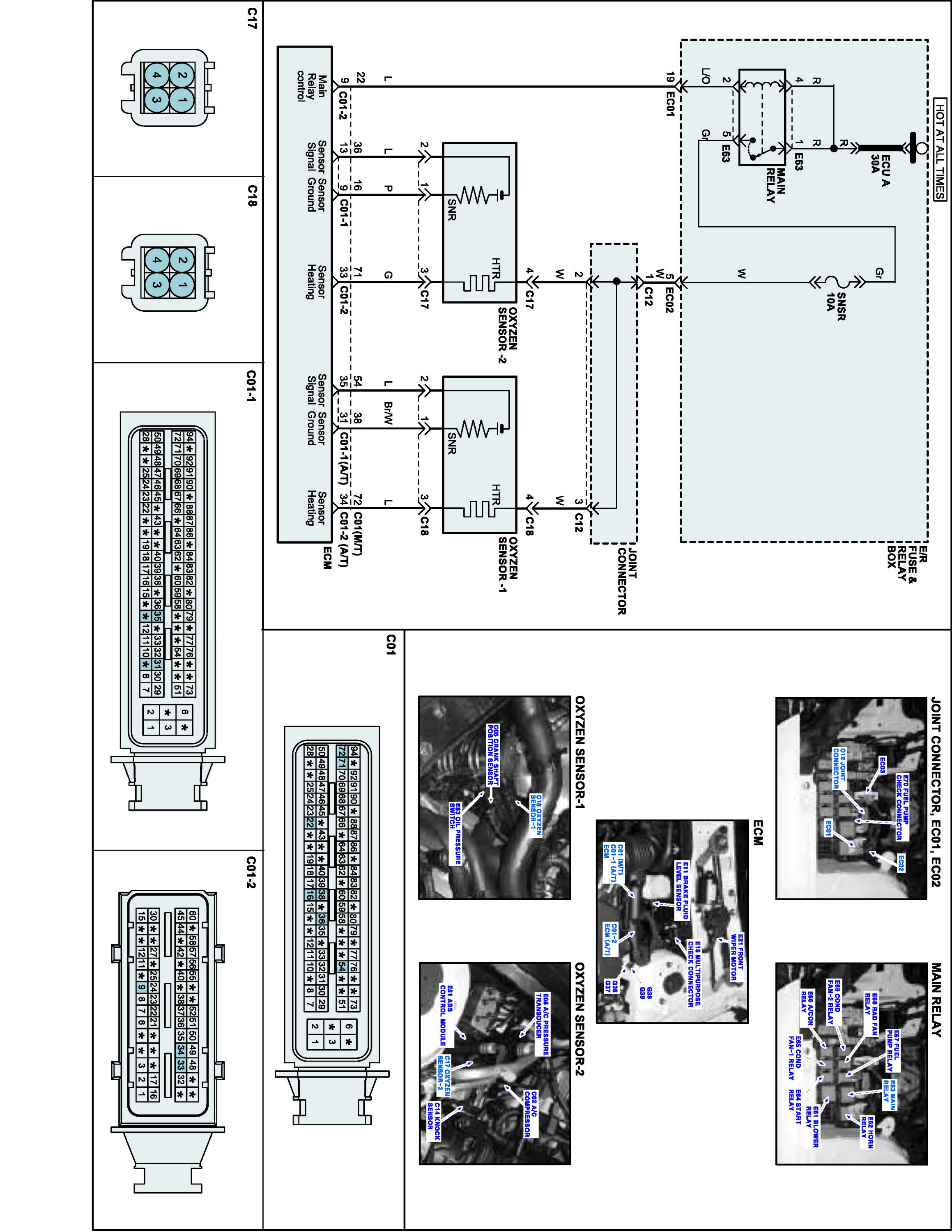

Schematic Diagram

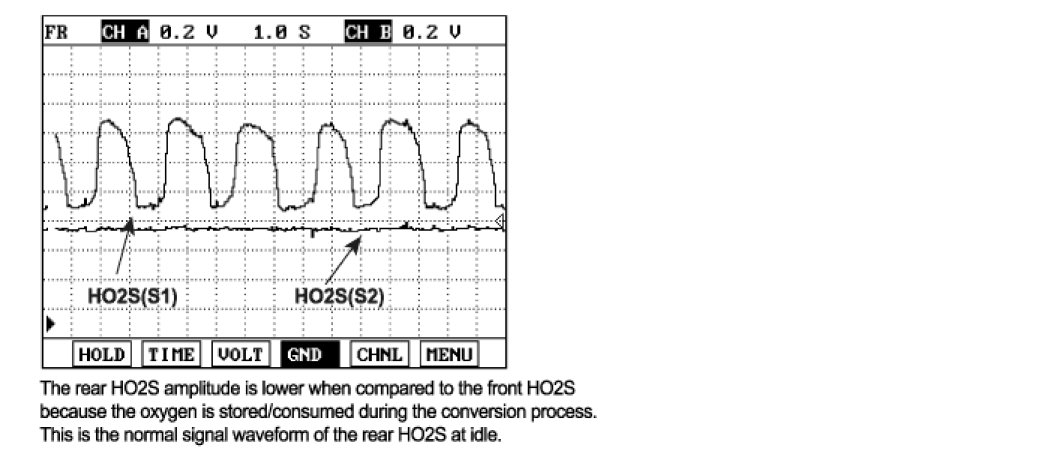

Signal Waveform
