P0111 Intake Air Temperature Sensor1 Circuit Range/Performance

General Information

Component Location





General Description

The Intake Air Temperature (IAT) sensor measures the temperature of engine intake air. The Intake Air Temperature (IAT) sensor is a thermistor (a variable resistor that changes along with outside air temperature) in series with a fixed resistor in the PCM. The PCM applies 5 V to the IAT sensor. The PCM monitors the voltage across the IAT sensor and converts it into a temperature reading. When the outside air temperature is cold the IAT sensor resistance is high, and when the outside air temperature is warm the IAT sensor resistance is low. Therefore, when the air temperature is cold the PCM will receive a high voltage input, and when the air temperature is warm the PCM will receive a low voltage input. The signal from IAT sensor is used for injection duration correction, ignition timing correction and idle speed correction (Air-density correction).

DTC Description

If measured temperature is satisfied with threshold value during 10 sec, PCM sets DTC P0111.

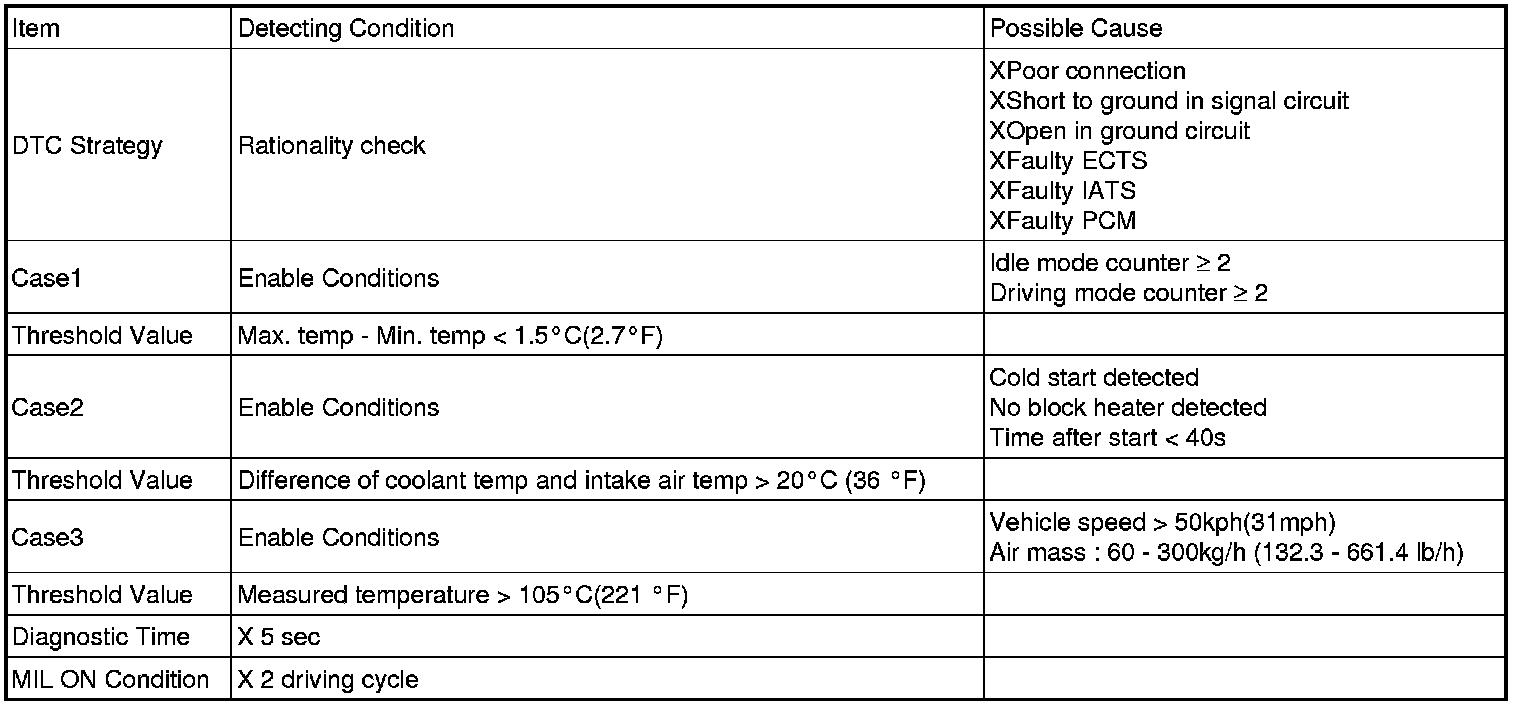

DTC Detecting Condition





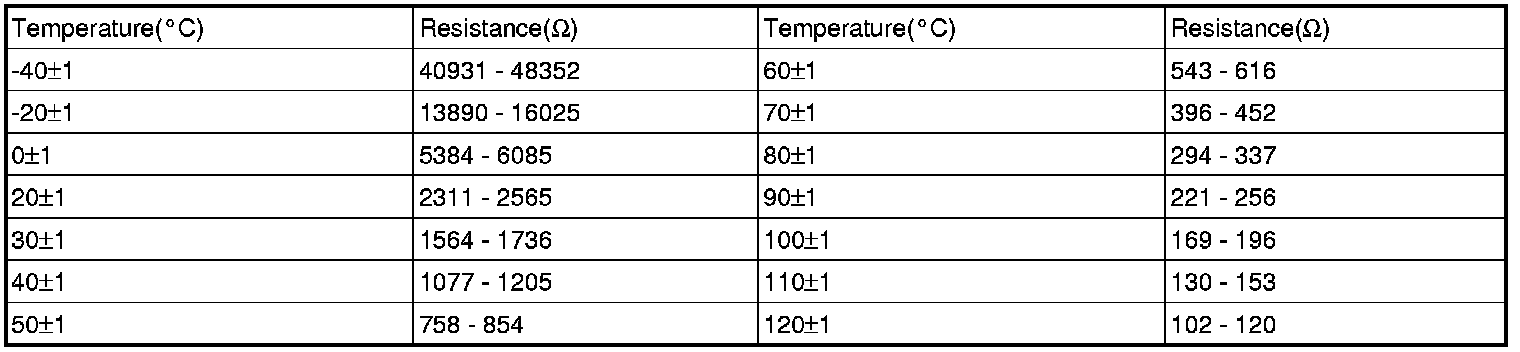

Specification





Schematic Diagram
