Component Inspection

P0076 Intake Valve Control Solenoid Circuit Low

Inspection/Repair - Component Inspection

Component Inspection

1. Check OCV
(1) IG "OFF".
(2) Disconnect OCV connector.

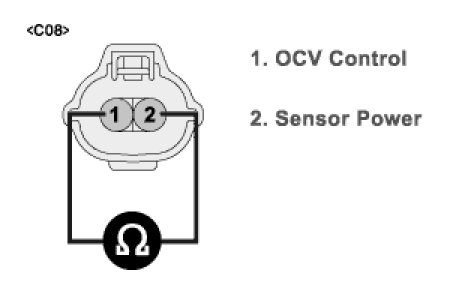

(3) Measure resitance between terminal 1 and 2 of OCV connector. (Component Side)
A. Specification :









(4) Is the measured resistance within specification?
YES
1) Substitute with a known - good ECM and check for proper operation.
If the problem is corrected, replace ECM and go to "Verification of Vehicle Repair" procedure.

CAUTION:
There is a memory reset function on scantool that can erase optional parts automatically detected and memorized by PCM.
Before or after testing PCM on the vehicle, use this function to reuse the PCM on the others

NO
1) Substitute with a known - good OCV and check for proper operation.
If the problem is corrected, replace OCV and go to "Verification of Vehicle Repair" procedure.
