W/Harness Inspection

C2402 Motor Electrical

Inspection/Repair - W/Harness Inspection

Terminal and Connector Inspection

1. Many malfunctions in the electrical system are caused by poor harness(es) and terminals. Faults can also be caused by interference from other electrical systems, and mechanical or chemical damage.
2. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
3. Has a problem been found?






Power Circuit Inspection

1. Ignition "OFF".
2. Disconnect HECU connector.
3. Ignition "ON".

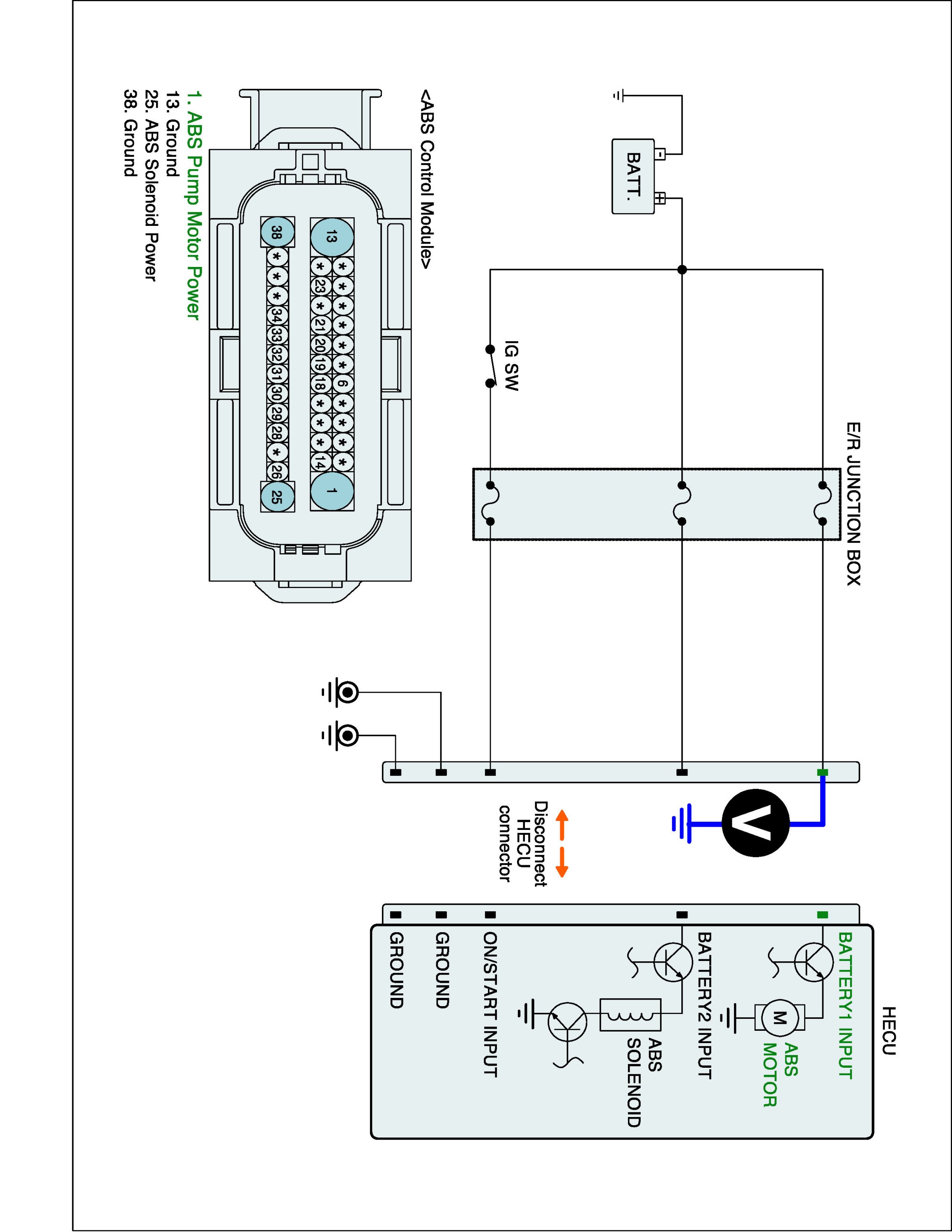

4. Measure voltage between power (ABS1) terminal of the HECU harness connector and chassis ground.

Specification :Approx. B+

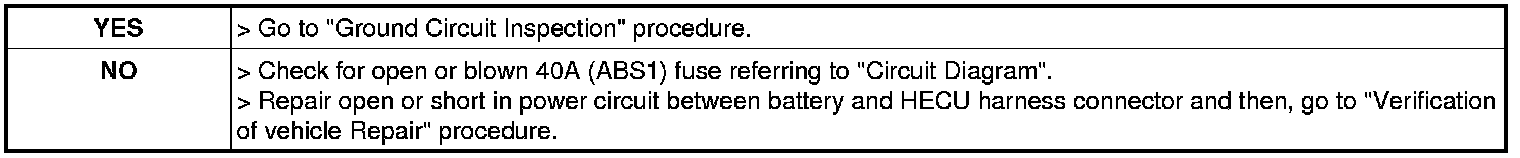

5. Is the measured voltage within specifications?






Ground Circuit Inspection

1. Ignition "OFF".
2. Disconnect HECU connector.

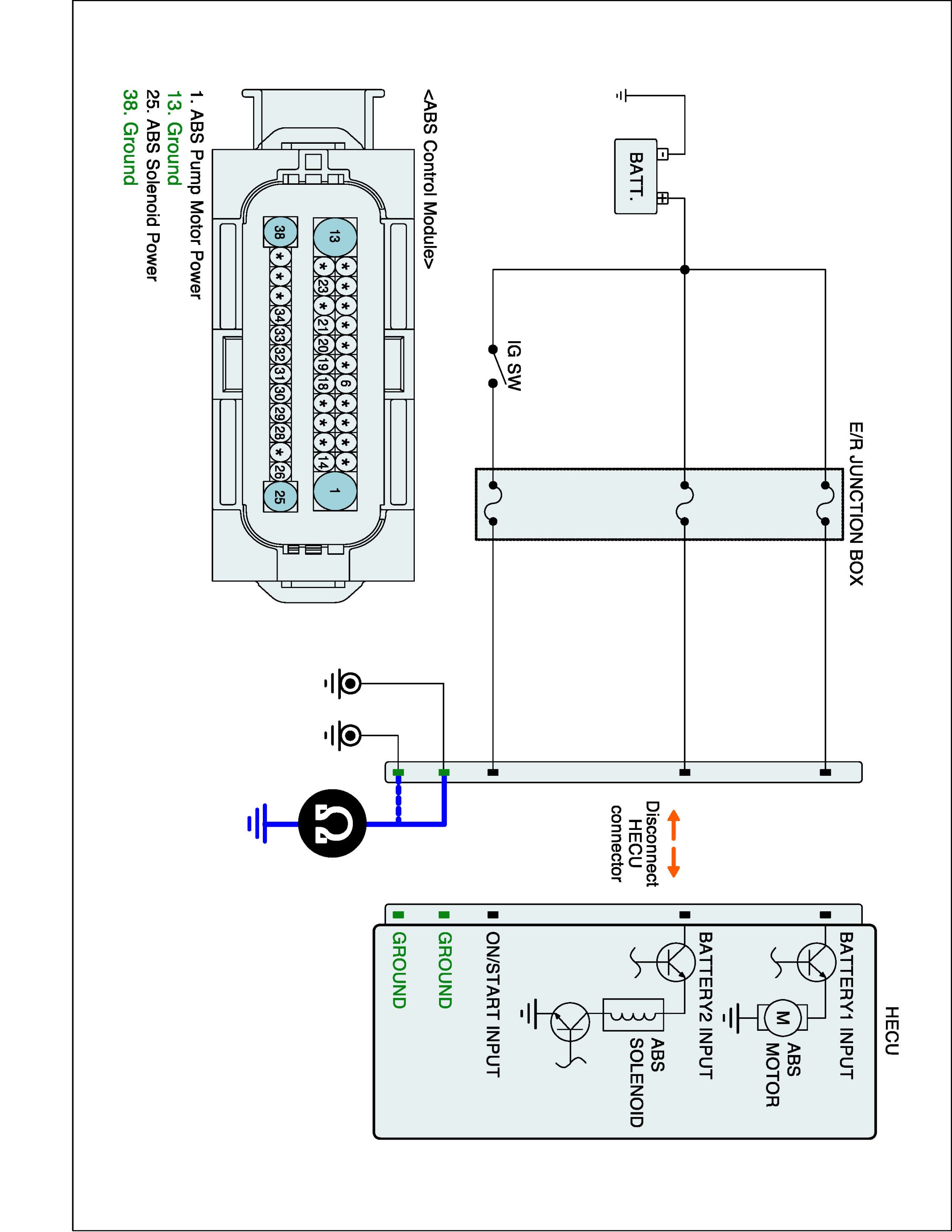

3. Measure resistance between ground terminal of the HECU harness connector and chassis ground.

Specification :Approx. below 1 Ohms

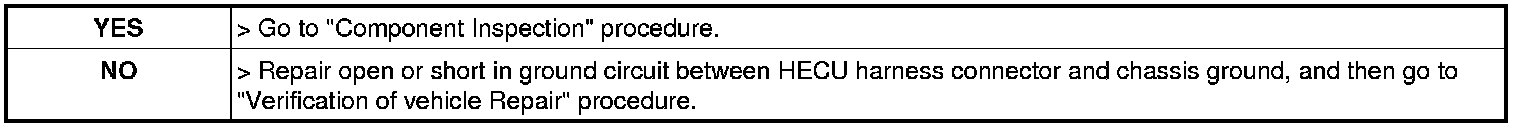

4. Is the measured wave within specifications?
