General Information

C1240 SPEED INPUT2 OPEN/SHORT CIRCUIT

General Information

General Description

The TPMS has a automatic sensor learn function.
This function is to register sensor ID automatically during driving. (Typical time at driving continuously over 12.4 mph (20 kph) to learn a new sensor is up to 20minutes.)
Therefore a speed input signal is used for this function.

DTC Description

This DTC indicates that the speed input 2 is open or short circuited.

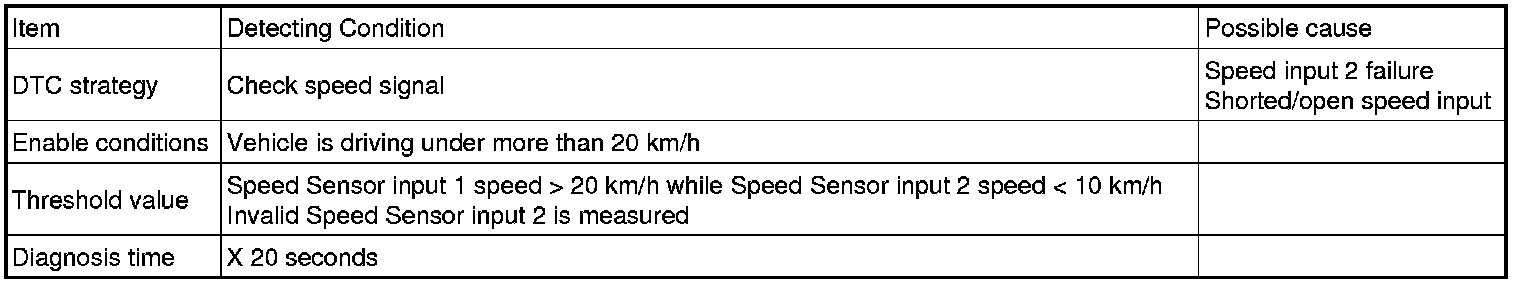

DTC Detecting Condition





Schematic Diagram
