Monitor DTC Status

C1101 Battery Voltage High

Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC)
2. Engine "ON".
3. Monitor the "BATTERY VOLTAGE" parameter on the scantool.

Specification :Below. 17.5 V

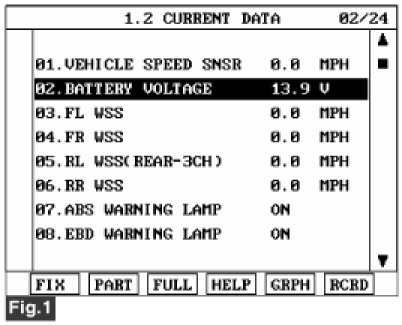

Fig 1) Test Condition : Ignition "ON" & Engine "ON".
Normal Data

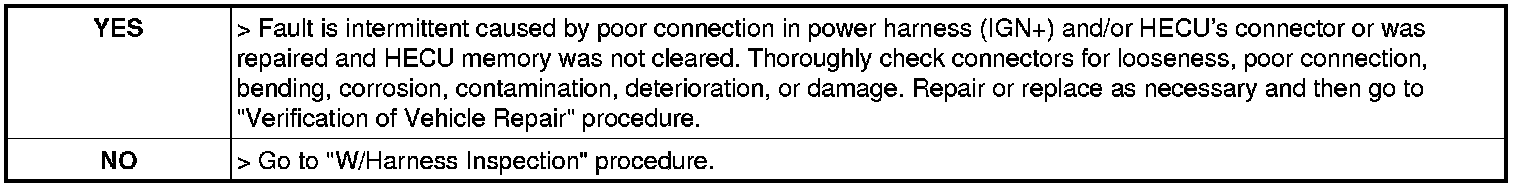

4. Is parameter displayed within specifications?
