Monitor DTC Status

B1670 Crash recorded in full stage (Frontal

Replace ECU) - Scantool Diagnostics:_:Monitor Scantool Data

Monitor Scantool Data

1. Ignition "OFF", connect scantool.

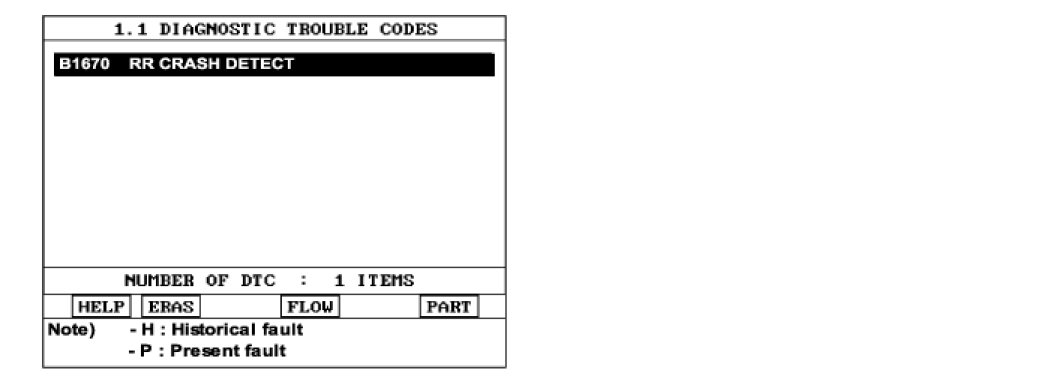

2. Ignition "ON" & Engine "OFF", select "Diagnostic Trouble Codes (DTC)" mode.
3. Monitor diagnostic trouble code and present of trouble code.
4. Using a scan tool, clear the DTC.




5. Is DTC present problem?
YES
1) Crash recorded Replace SRSCM.
2) Go to "Verification of Vehicle Repair" procedure.
