Monitor DTC Status

B1513 Buckle Switch Passenger open or short to Battery

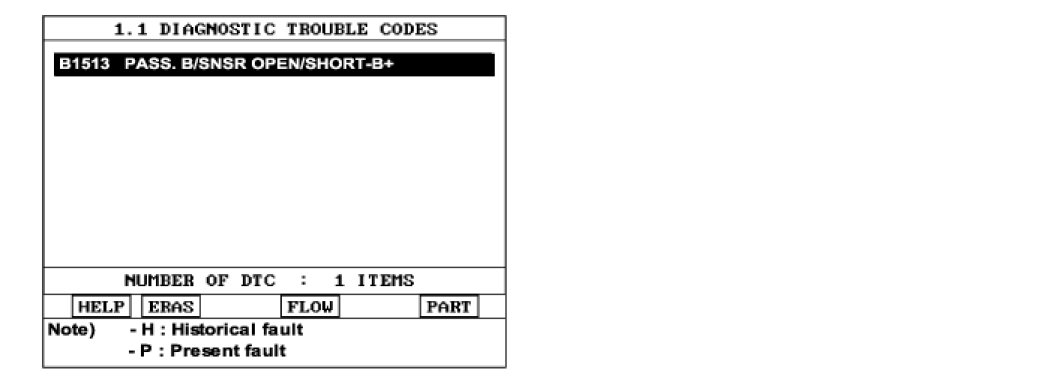

Scantool Diagnostics - Monitor Scantool Data

Monitor Scantool Data

1. Ignition "OFF", connect scantool.
2. Ignition "ON" & Engine "OFF", select "Diagnostic Trouble Codes (DTC)" mode.
3. Monitor diagnostic trouble code and present of trouble code.
4. Using a scan tool, clear the DTC.




5. Is DTC present problem?
YES
1) Go to "W/Harness Inspection" procedure.
NO
1) Displaying nothing (no DTC) or DTC with label "H" (historical) shows that Fault is intermittent caused by poor contact in the part's and/or SRSCM connector or was repaired and SRSCM memory was not cleared.
Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
2) Repair or replace as necessary and then go to "Verification of Vehicle Repair" procedure.
