General Information

B1395 Firing loops interconnection fault

General Information

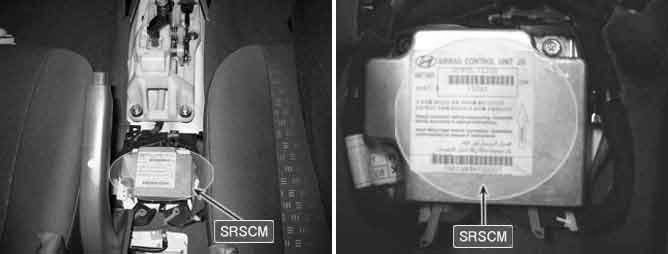

Component Location





General Description

Every air bag module has its firing circuit that ignites powder to deploy air bag according to signal of SRSCM.
SRSCM checks every air bag module when ignition "ON". Once any fault is detected, it is erased only by scantool.

DTC Description

The SRSCM sets DTC B1395 if there's any short circuit in harness of every firing circuit to one another.

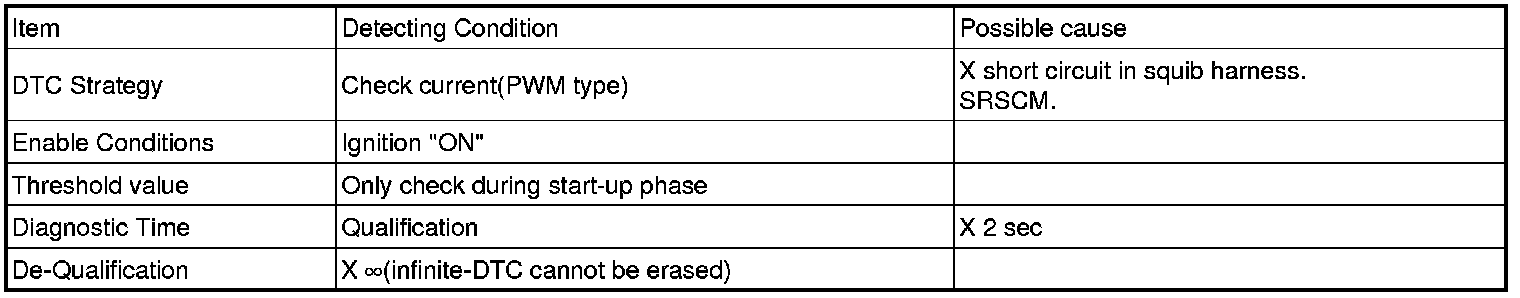

DTC Detecting Condition

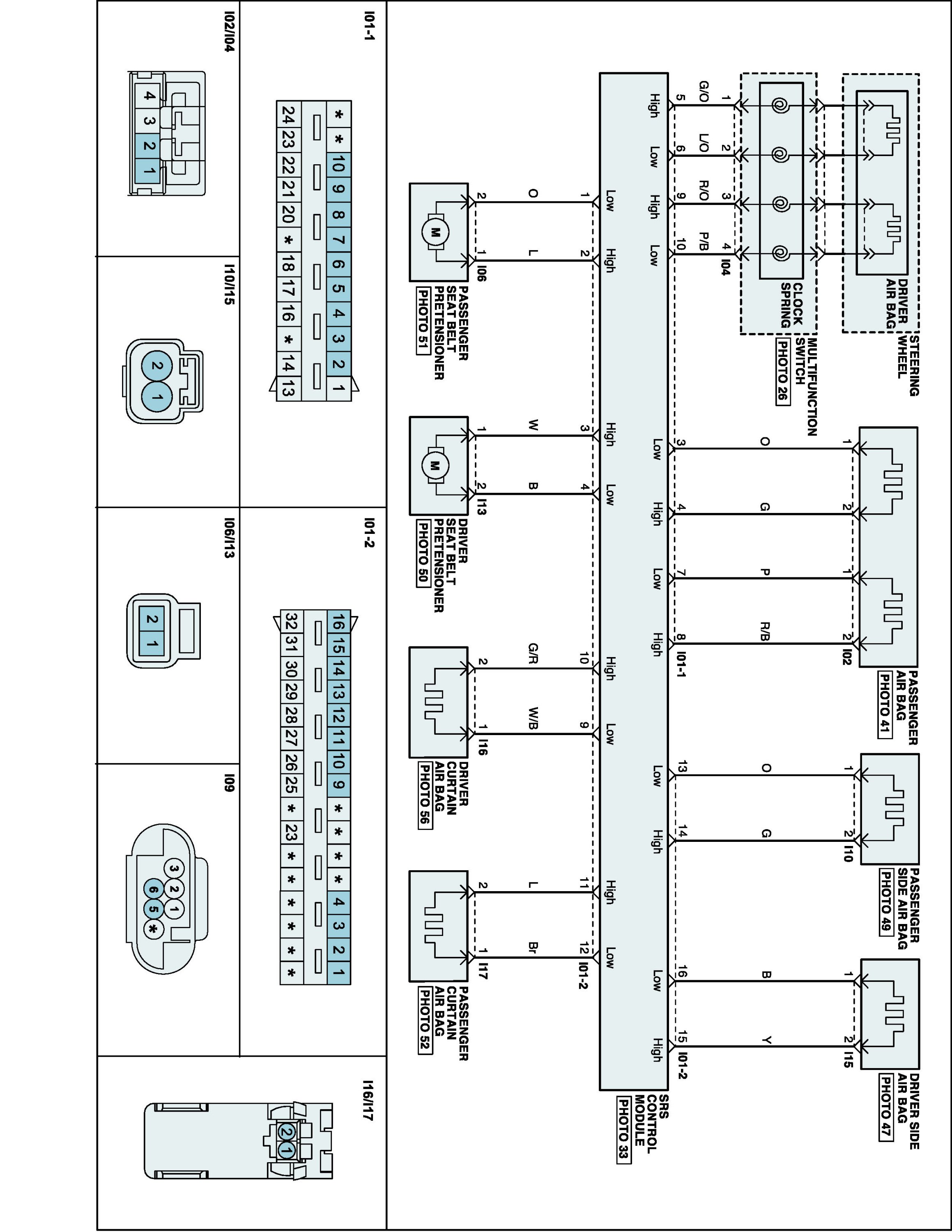

Schematic Diagram
