General Information

B1102 Battery voltage low

General Information

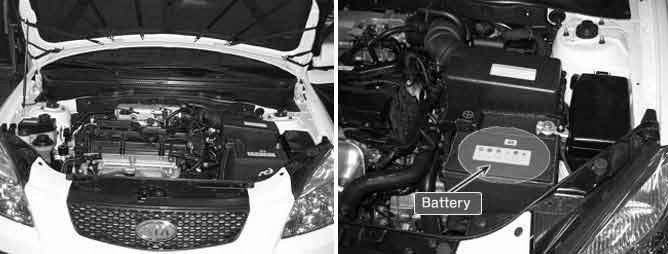

Component Location





General Description

SRSCM (Supplemental Restraints System Control Module) checks input voltage when "IG ON" to make air bag system work properly.
If input voltage is out of normal range, there can be malfunction in system operation. In this case, Check battery and charging system.

DTC Description

The SRSCM sets DTC B1102 and turns warning light on if voltage above threshold value is detected for more than 16 sec. (If voltage within threshold value is detected for 10 sec. SRSCM regards DTC as being cleared and turns warning light off).

DTC Detecting Condition





Specification





Schematic Diagram
