Front Door Window Glass Weatherstrip: Service and Repair





REPLACEMENT

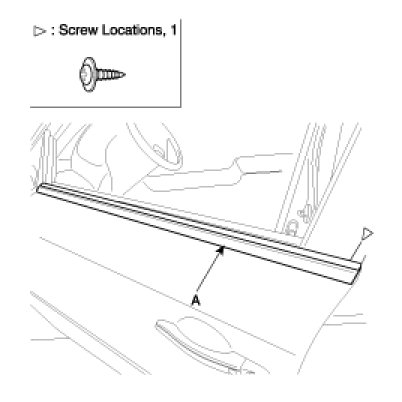

DOOR BELT WEATHERSTRIP REPLACEMENT
1. Loosen the mounting screw, then remove the door belt weatherstrip (A).




2. Installation is the reverse of removal.
