Windshield Deicer Relay

Inspection

1. Disconnect the negative (-) battery terminal.
2. Remove the junction box.

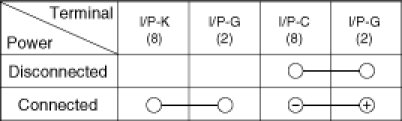

3. Check for continuity between the terminals.
4. There should be continuity between the No.2 in the I/P-G and No.8 terminal in the I/P-K when power and ground are connected to the No.2 terminal in the I/P-G and No.8 terminal in the I/P-C.
5. There should be no continuity between the No.2 terminal in the I/P-G and No.8 terminal in the I/P-K when power is disconnected.
