Diagram Set SD558 (Electronic Stability Control (ESC) System)
Diagram Set SD558 (Electronic Stability Control (ESC) System)

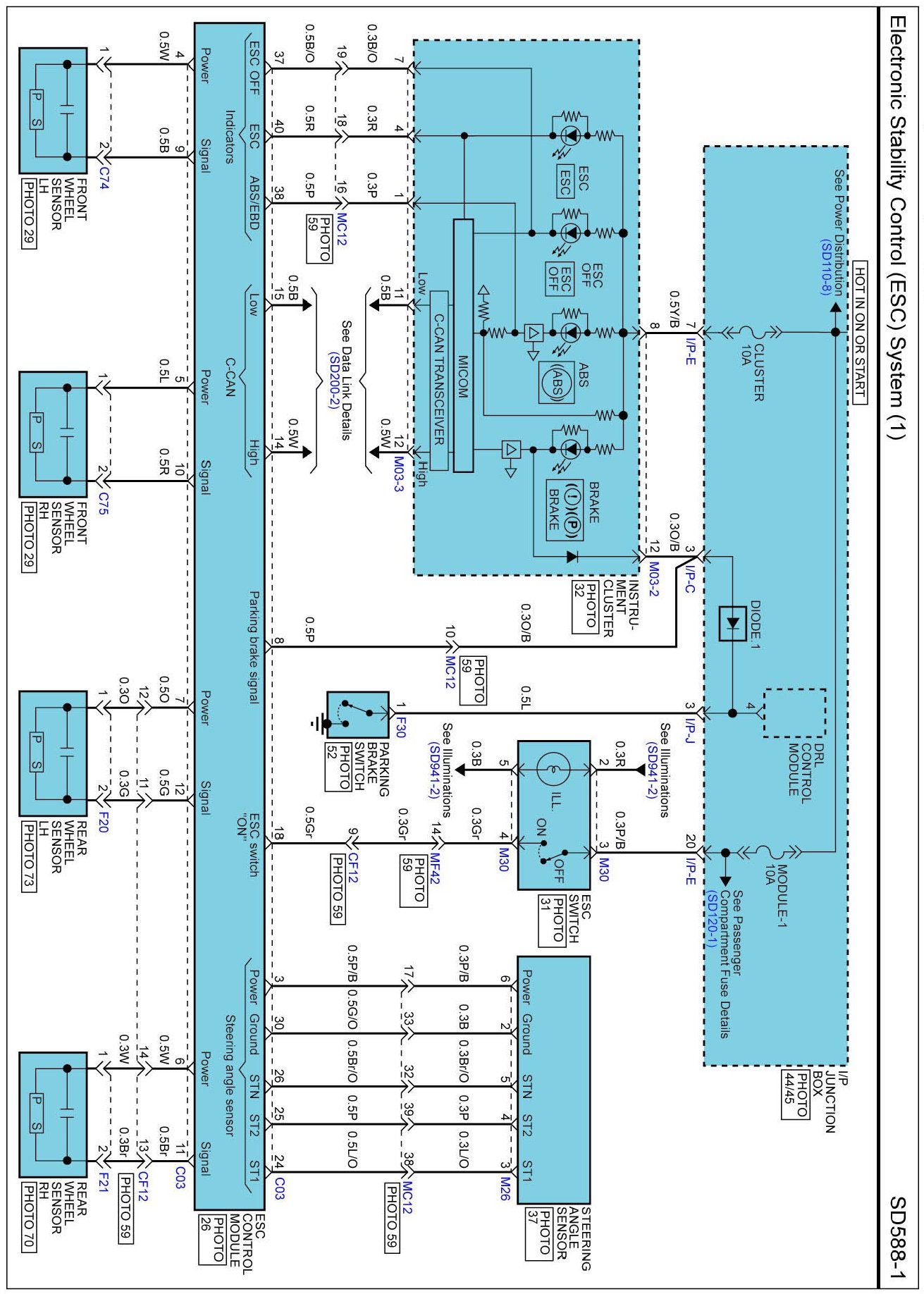

SD588-1 Electronic Stability Control (ESC) System (1):

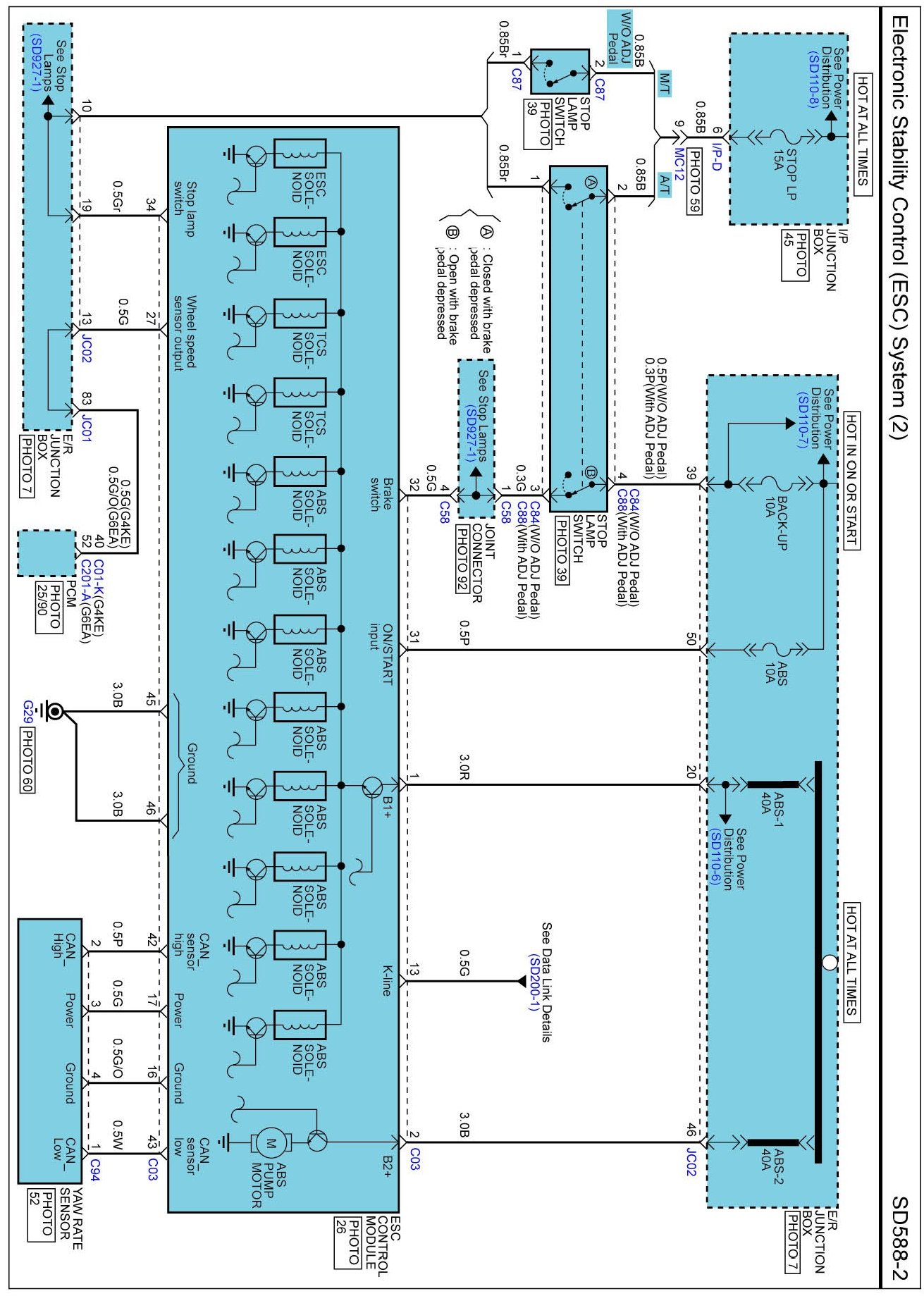

SD588-2 Electronic Stability Control (ESC) System (2):
