Inspection of Rear Disc Brake Pad

INSPECTION OF REAR DISC BRAKE PAD

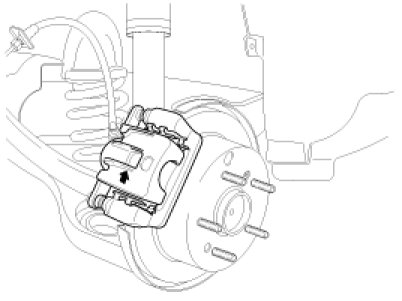

1. Check the brake pad thickness through the caliper body inspection hole.

Pad thickness
Standard value : 10.0 mm (0.39 in.)
Service limit : 2.0 mm (0.0787 in.)






CAUTION:
- If the pad thickness is out of specification, left and right pads must be replaced as a complete set.
- When the thickness difference between the left pad and right pad is large, check the sliding condition of the piston and the guide rod.
