Replacement

Replacement

CAUTION:
Frequent inhalation of brake pad dust, regardless of material composition, could be hazardous to your health.
- Avoid breathing dust particles.
- Never use on air hose or brush to clean brake assemblies.

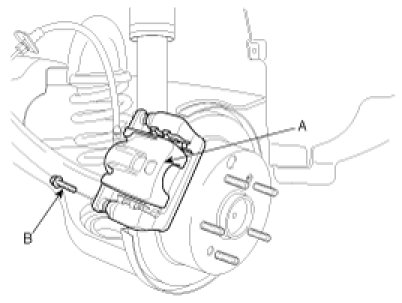

1. Remove guide rod bolt (B) and raise the caliper assembly (A).

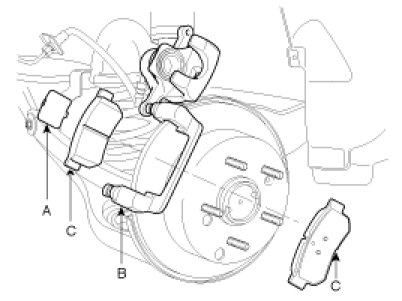

2. Remove the pads (B), the pad shims (C) and the pad retainers (D) from the caliper bracket (A).
