Sunroof Assembly Replacement

REPLACEMENT

SUNROOF ASSEMBLY REPLACEMENT
1. Remove the follows parts.
A. Front and rear door scuff trim.
B. Front and rear pillar trim.
C. Center pillar trim.
D. Headliner.
E. Sunroof glass.

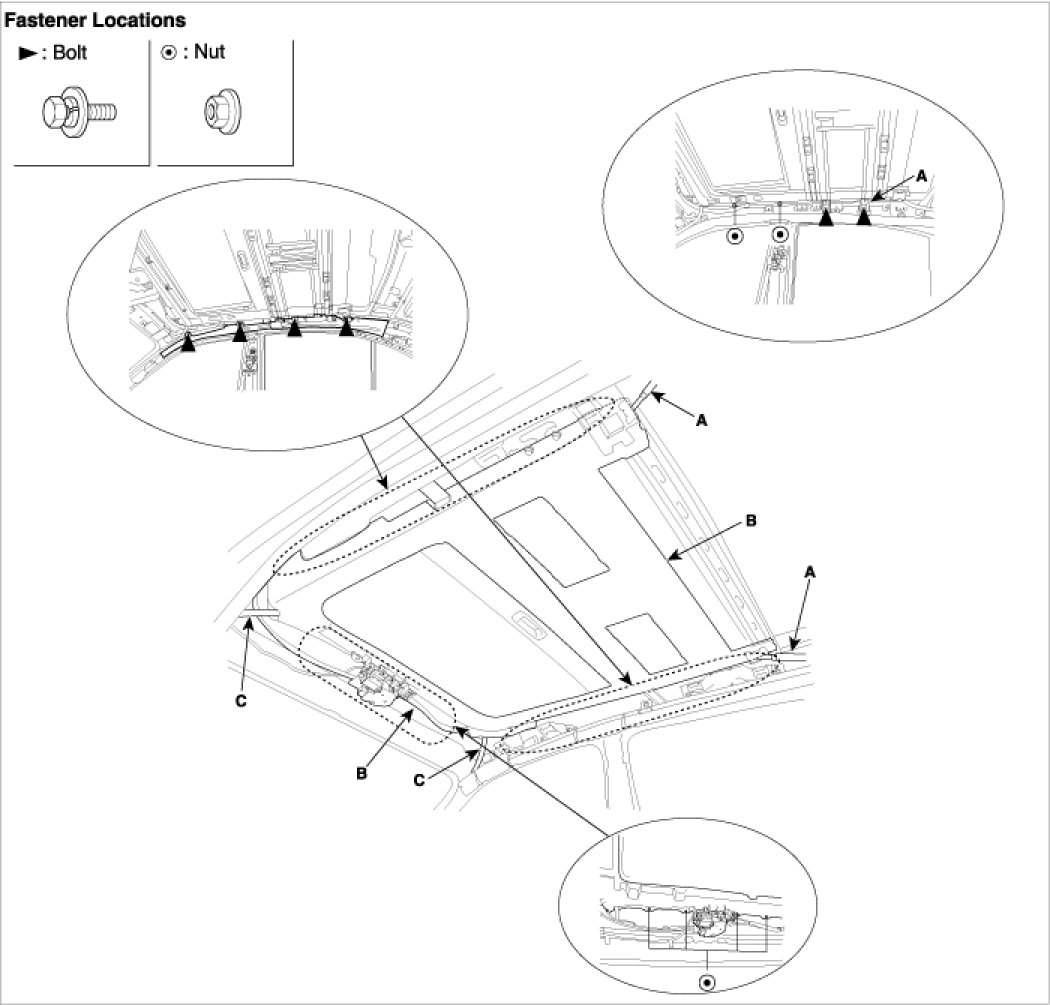

2. Disconnect the drain tubes (C).
3. Remove the bracket (A).
4. After loosening the mounting bolts and nuts, remove the sunroof assembly (B).

NOTE:
- Take care not to scratch the interior trims and other parts.

5. Installation is the reverse of removal.
