Electro Chromic Inside Rear View Mirror

Replacement

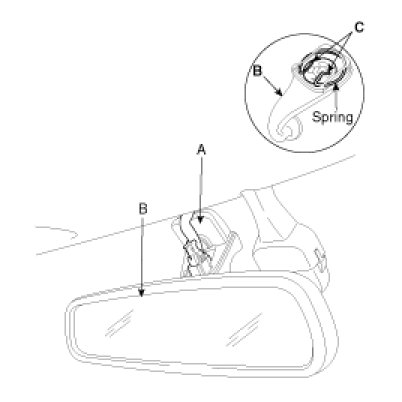

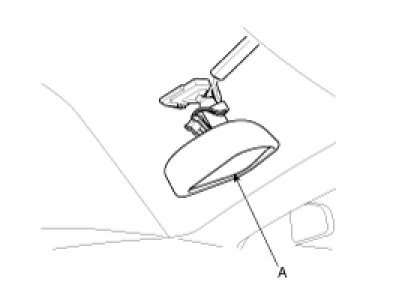

1. Push the inside rear view mirror base down to remove the inside rear view mirror assembly (A) after removing the mirror wire cover.





NOTE:
Take care not to damage the mounting bracket spring during removal / installation.




2. Installation is the reverse of removal.
