Package Tray

REPLACEMENT

PACKAGE TRAY TRIM REPLACEMENT

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damaged.
- Take care not to bend or scratch the trim and panels.

1. Remove the following items.
A. Rear seat assembly.
B. Rear seat belt lower anchor.
2. Remove the rear pillar trim.
3. Loosening the package tray trim mounting screws.

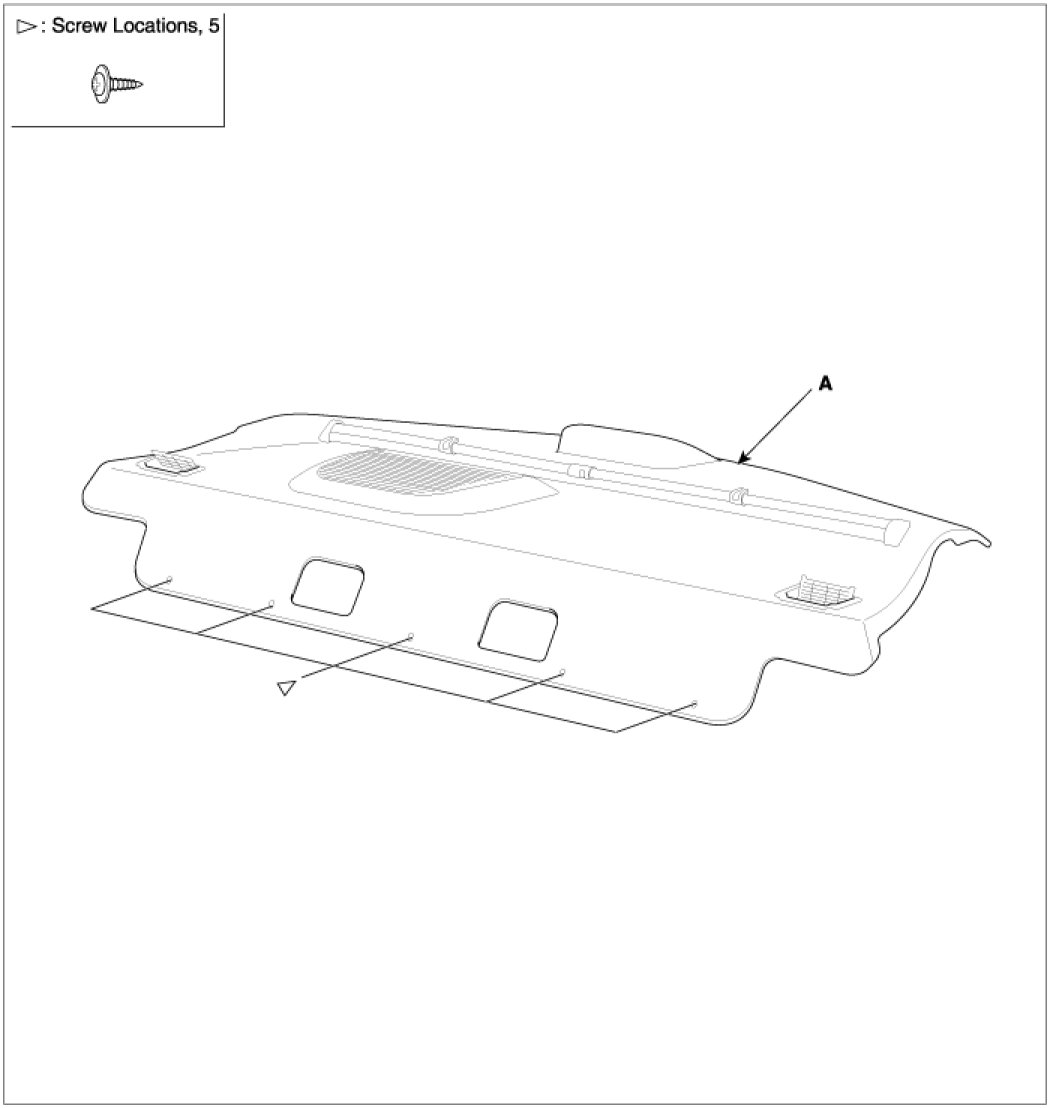

4. Remove the package tray trim (A).
5. Installation is the reverse of removal.

NOTE:
- Replace any damaged clips.
