Center Lower and Upper Pillar Trim Replacement

REPLACEMENT

CENTER LOWER AND UPPER PILLAR TRIM REPLACEMENT

NOTE:
- Put on gloves to protect your hands.
- When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damaged.
- Take care not to bend or scratch the trim and panels.

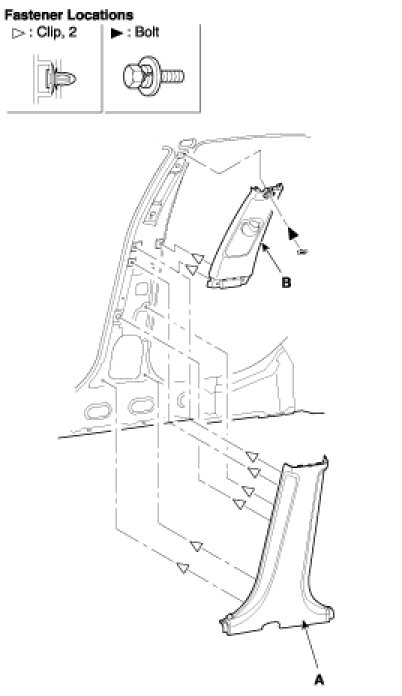

1. Remove the center lower pillar trim(A).
2. Remove the center upper pillar trim(B).




3. Installation is the reverse of removal.

NOTE:
- Replace any damaged clips.
