Sun Visor: Service and Repair

REPLACEMENT

SUNVISOR REPLACEMENT

NOTE:
- When prying with a flat-tipped screwdriver, wrap it with protective tape to prevent damaged.
- Put on gloves to protect your hands.

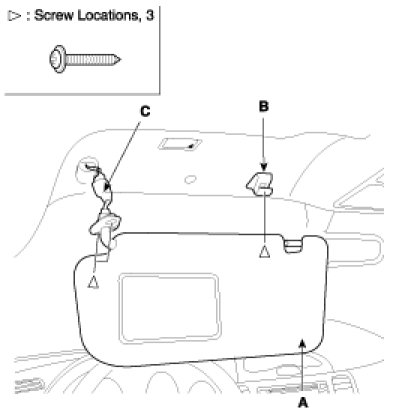

1. Remove the sunvisor (A) and holder (B) from each side.
2. Disconnected the connector (C).




3. Installation is the reverse of removal.
